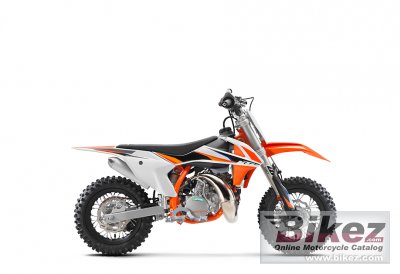

These are the known mechanical and performance specifications for your 2021 KTM 50 SX Mini.
Basic Specs
Engine
Displacement49.8 ccm (3.04 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke39.5 x 40.0 mm (1.6 x 1.6 inches)
Valves/Cylinder
Fueling
Ignition
Exhaust
Lubrication
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity2.10 litres (0.55 US gallons)
Emissions
Chassis
Frame Type25CrMo4 steel central-tube
Rake24.0 deg
Trail
Front SuspensionXACT 35 WP Upside-Down fork, Ø 35 mm
Front Travel100 mm (3.9 inches)
Rear SuspensionXACT WP mono shock
Rear Travel147 mm (5.8 inches)
Seat
Seat Height558 mm (22.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance184 mm (7.2 inches)
Wheelbase
Dry Weight40.0 kg (88.2 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter160 mm (6.3 inches)
Rear BrakesSingle disc
Rear Brake Diameter160 mm (6.3 inches)
Wheels
Comments
