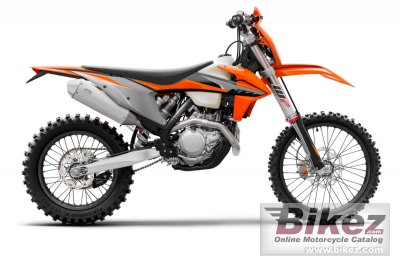

2021 KTM 500 XCF-W Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 KTM 500 XCF-W .

Basic Specs

KTM 500 XCF-W
Year2021
MakeKTM
ModelKTM 500 XCF-W
CostUS$ 11190. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement510.9 ccm (31.18 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke95.0 x 72.0 mm (3.7 x 2.8 inches)
Valves/Cylinder
FuelingInjection
IgnitionKeihin EMS
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet, DDS multi-disc clutch, Brembo hydraulics
DrivelineX-Ring 5/8 x 1/4´ chain

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption3.62 litres/100 km (27.6 km/l or 64.98 mpg)
Fuel Capacity9.50 litres (2.51 US gallons)
Emissions84.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeCentral double-cradle-type 25CrMo4 stee
Rake26.5 deg
Trail
Front SuspensionWP XPLOR-USD, Ø 48 mm
Front Travel300 mm (11.8 inches)
Rear SuspensionWP Xplor PDS shock absorber
Rear Travel310 mm (12.2 inches)
Seat
Seat Height950 mm (37.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance370 mm (14.6 inches)
Wheelbase1482 mm (58.3 inches)
Dry Weight106.5 kg (234.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the KTM 500 XCF-W . This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 510.9 ccm (31.18 cubic inches) of actual displacement before compression. Fueling is metered via Injection allowing this machine to produce its horsepower and torque. According to our records engine heat of the KTM 500 XCF-W is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, Central double-cradle-type 25CrMo4 stee. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The KTM 500 XCF-W was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
