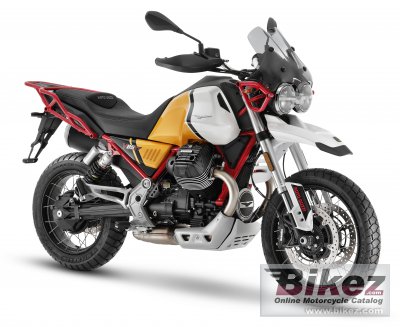

2021 Moto Guzzi V85 TT Premium Graphics Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Moto Guzzi V85 TT Premium Graphics.

Basic Specs

Moto Guzzi V85 TT Premium Graphics
Year2021
MakeMoto Guzzi
ModelMoto Guzzi V85 TT Premium Graphics
Cost

Engine

Displacement853.0 ccm (52.05 cubic inches)
TypeTransversal 90° V-twin
DetailsV2, four-stroke
Max RPM
Compression
Bore/Stroke84.0 x 77.0 mm (3.3 x 3.0 inches)
Valves/Cylinder2
FuelingInjection
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final Drive
Clutch
Driveline

Performance

Horespower80.0 HP (58.4 kW) @ 7750 RPM
Torque80.0 Nm (8.2 kgf-m or 59.0 ft.lbs) @ 5000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption4.90 litres/100 km (20.4 km/l or 48.00 mpg)
Fuel Capacity21.00 litres (5.55 US gallons)
Emissions113.7 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake
Trail
Front SuspensionUpside down hydraulic telescopic fork Ø 41 mm, with adjustable extension and spring preload.
Front Travel
Rear SuspensionSwingarm Twin-sided with lateral mono shock absorber, adjustable extension and spring preload.
Rear Travel
Seat
Seat Height803 mm (31.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase
Dry Weight208.0 kg (458.6 pounds)
Wet Weight229.0 kg (504.9 pounds)

Wheels & Brakes

Front Tire/Tyre110/80-19
Rear Tire/Tyre150/70-17
Front BrakesDouble disc. Radial Brembo calipers with 4 opposed pistons. ABS.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Floating 2 pistons caliper. ABS.
Rear Brake Diameter260 mm (10.2 inches)
WheelsSpoked with tube

Comments

It appears you're interested in specifications for the Moto Guzzi V85 TT Premium Graphics. This Enduro / offroad model is powered by a Transversal 90° V-twin V2, four-stroke engine with 853.0 ccm (52.05 cubic inches) of actual displacement before compression. Fueling is metered via Injection allowing this machine to produce its 80.0 HP (58.4 kW) @ 7750 RPM horsepower and 80.0 Nm (8.2 kgf-m or 59.0 ft.lbs) @ 5000 RPM torque. According to our records engine heat of the Moto Guzzi V85 TT Premium Graphics is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 110/80-19 and the rear is 150/70-17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Radial Brembo calipers with 4 opposed pistons. ABS. front brakes and Single disc. Floating 2 pistons caliper. ABS. rear brakes. The Moto Guzzi V85 TT Premium Graphics was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Ride by Wire, 3 Riding Mode. Traction control. Cruise Control. Small windshield.
