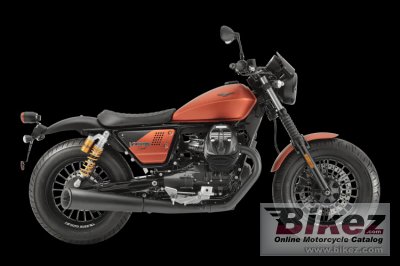

2021 Moto Guzzi V9 Bobber Sport Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Moto Guzzi V9 Bobber Sport.

Basic Specs

Moto Guzzi V9 Bobber Sport
Year2021
MakeMoto Guzzi
ModelMoto Guzzi V9 Bobber Sport
Cost

Engine

Displacement853.0 ccm (52.05 cubic inches)
TypeTransversal 90° V-twin
DetailsV2, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke84.0 x 77.0 mm (3.3 x 3.0 inches)
Valves/Cylinder2
FuelingInjection. Weber-Marelli electronic fuel injection
Ignition
ExhaustStainless steel, 2-in-2 type, three-way catalytic converter with double lambda oxygen probe
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final Drive
Clutch
Driveline

Performance

Horespower55.0 HP (40.1 kW) @ 6250 RPM
Torque62.0 Nm (6.3 kgf-m or 45.7 ft.lbs) @ 3000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption4.91 litres/100 km (20.4 km/l or 47.91 mpg)
Fuel Capacity15.00 litres (3.96 US gallons)
Emissions113.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeALS steel twin tube cradle frame
Rake26.4 deg
Trail116 mm (4.6 inches)
Front SuspensionHydraulic telescopic fork
Front Travel130 mm (5.1 inches)
Rear SuspensionDual shocks
Rear Travel99 mm (3.9 inches)
SeatDuale seat
Seat Height785 mm (30.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1160 mm (45.7 inches)
Total Length2185 mm (86.0 inches)
Total Width840 mm (33.1 inches)
Ground Clearance
Wheelbase1465 mm (57.7 inches)
Dry Weight194.0 kg (427.7 pounds)
Wet Weight210.0 kg (463.0 pounds)

Wheels & Brakes

Front Tire/Tyre130/90-16
Rear Tire/Tyre150/80-16
Front BrakesSingle disc. ABS. Brembo opposed four-piston callipers.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. Floating 2 pistons caliper.
Rear Brake Diameter260 mm (10.2 inches)
WheelsAluminium alloy

Comments

It appears you're interested in specifications for the Moto Guzzi V9 Bobber Sport. This Allround model is powered by a Transversal 90° V-twin V2, four-stroke engine with 853.0 ccm (52.05 cubic inches) of actual displacement before 10.5:1 compression. Fueling is metered via Injection. Weber-Marelli electronic fuel injection allowing this machine to produce its 55.0 HP (40.1 kW) @ 6250 RPM horsepower and 62.0 Nm (6.3 kgf-m or 45.7 ft.lbs) @ 3000 RPM torque. According to our records engine heat of the Moto Guzzi V9 Bobber Sport is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 130/90-16 and the rear is 150/80-16 . The entire package is supported by the frame, ALS steel twin tube cradle frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. ABS. Brembo opposed four-piston callipers. front brakes and Single disc. ABS. Floating 2 pistons caliper. rear brakes. The Moto Guzzi V9 Bobber Sport was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Ride by Wire. Also available as a power reduced 35 kW version.
