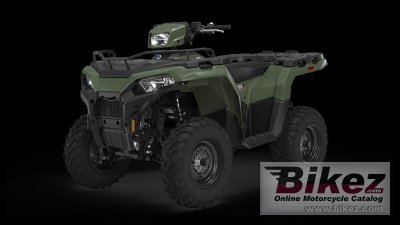

2021 Polaris Sportsman 570 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Polaris Sportsman 570.

Basic Specs

Polaris Sportsman 570
Year2021
MakePolaris
ModelPolaris Sportsman 570
TypeATV
CostUS$ 7149. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement567.0 ccm (34.60 cubic inches)
TypeProstar enegine
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke
Valves/Cylinder
FuelingInjection. EFI
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

GearboxAutomatic
Final Drive
Clutch
DrivelineAutomatic PVT P/R/N/L/H; Shaft

Performance

Horespower44.0 HP (32.1 kW)
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 US gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionSealed MacPherson Strut
Front Travel208 mm (8.2 inches)
Rear SuspensionSealed Dual A-Arm,
Rear Travel241 mm (9.5 inches)
Seat
Seat Height857 mm (33.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1194 mm (47.0 inches)
Total Length2108 mm (83.0 inches)
Total Width1219 mm (48.0 inches)
Ground Clearance292 mm (11.5 inches)
Wheelbase1283 mm (50.5 inches)
Dry Weight319.8 kg (705.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre25/8-12
Rear Tire/Tyre25/10-12
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc. Hydraulic.
Rear Brake Diameter
WheelsSteel

Comments

It appears you're interested in specifications for the Polaris Sportsman 570. This ATV model is powered by a Prostar enegine Single cylinder, four-stroke engine with 567.0 ccm (34.60 cubic inches) of actual displacement before compression. Fueling is metered via Injection. EFI allowing this machine to produce its 44.0 HP (32.1 kW) horsepower and torque. According to our records engine heat of the Polaris Sportsman 570 is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 25/8-12 and the rear is 25/10-12 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc. Hydraulic. rear brakes. The Polaris Sportsman 570 was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

On-Demand True AWD/2WD. Various options, eg., electronic power steering (EPS).
