2021 Shanyang SY150ZH-B Cargo Tricycle Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Shanyang SY150ZH-B Cargo Tricycle.

Basic Specs

Shanyang SY150ZH-B Cargo Tricycle
Year2021
MakeShanyang
ModelShanyang SY150ZH-B Cargo Tricycle
Cost

Engine

Displacement149.0 ccm (9.09 cubic inches)
TypeLifan engine
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final Drive
Clutch
Driveline

Performance

Horespower11.0 HP (8.0 kW)
Torque9.8 Nm (1.0 kgf-m or 7.2 ft.lbs)
Top Speed60.0 km/h (37.3 mph)

Fuel Economy & Polution

Fuel Consumption3.20 litres/100 km (31.3 km/l or 73.51 mpg)
Fuel Capacity12.00 litres (3.17 US gallons)
Emissions74.2 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeSteel
Rake
Trail
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance160 mm (6.3 inches)
Wheelbase2130 mm (83.9 inches)
Dry Weight320.0 kg (705.5 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre5.00-12
Rear Tire/Tyre5.00-12
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
WheelsSteel rims

Comments

It appears you're interested in specifications for the Shanyang SY150ZH-B Cargo Tricycle. This Allround model is powered by a Lifan engine Single cylinder, four-stroke engine with 149.0 ccm (9.09 cubic inches) of actual displacement before 9.0:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 11.0 HP (8.0 kW) horsepower and 9.8 Nm (1.0 kgf-m or 7.2 ft.lbs) torque. According to our records engine heat of the Shanyang SY150ZH-B Cargo Tricycle is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 5.00-12 and the rear is 5.00-12 . The entire package is supported by the frame, Steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Expanding brake (drum brake) rear brakes. The Shanyang SY150ZH-B Cargo Tricycle was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

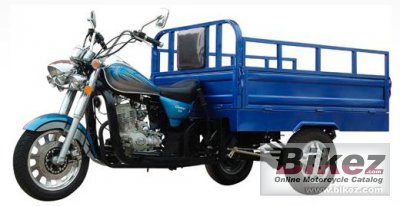

Chinese three wheel cargo bike.
