2021 Sommer Diesel 516 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Sommer Diesel 516.

Basic Specs

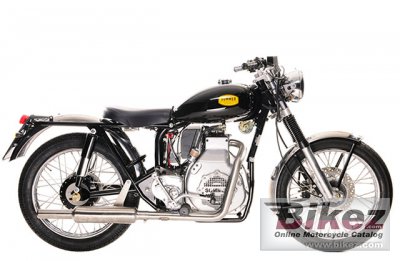

Sommer Diesel 516
Year2021
MakeSommer
ModelSommer Diesel 516
Cost

Engine

Displacement516.0 ccm (31.49 cubic inches)
TypeHatz 1B40 engine
DetailsDiesel
Max RPM4000
Compression20.5:1
Bore/Stroke93.0 x 76.0 mm (3.7 x 3.0 inches)
Valves/Cylinder2
FuelingInjection
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox4-speed
Final Drive
Clutch5-plate in oil bath
Driveline

Performance

Horespower12.0 HP (8.8 kW) @ 3500 RPM
Torque27.5 Nm (2.8 kgf-m or 20.3 ft.lbs) @ 2000 RPM
Top Speed99.0 km/h (61.5 mph)

Fuel Economy & Polution

Fuel Consumption2.50 litres/100 km (40.0 km/l or 94.09 mpg)
Fuel Capacity13.50 litres (3.57 US gallons)
Emissions58.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeSteel tube
Rake25.0 deg
Trail
Front SuspensionTelescopi fork
Front Travel150 mm (5.9 inches)
Rear SuspensionSwing arm
Rear Travel120 mm (4.7 inches)
SeatSingle seat
Seat Height760 mm (29.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1410 mm (55.5 inches)
Dry Weight165.0 kg (363.8 pounds)
Wet Weight180.0 kg (396.8 pounds)

Wheels & Brakes

Front Tire/Tyre3.25-19
Rear Tire/Tyre3.50-19
Front BrakesSingle disc. Optional drum brake
Front Brake Diameter280 mm (11.0 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter152 mm (6.0 inches)
WheelsStainless steel rims, wire spoked

Comments

It appears you're interested in specifications for the Sommer Diesel 516. This Allround model is powered by a Hatz 1B40 engine Diesel engine with 516.0 ccm (31.49 cubic inches) of actual displacement before 20.5:1 compression. Fueling is metered via Injection allowing this machine to produce its 12.0 HP (8.8 kW) @ 3500 RPM horsepower and 27.5 Nm (2.8 kgf-m or 20.3 ft.lbs) @ 2000 RPM torque. According to our records engine heat of the Sommer Diesel 516 is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 3.25-19 and the rear is 3.50-19 . The entire package is supported by the frame, Steel tube. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Optional drum brake front brakes and Expanding brake (drum brake) rear brakes. The Sommer Diesel 516 was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Modified Royal Enfield bike without any Hand-made in Germany.
