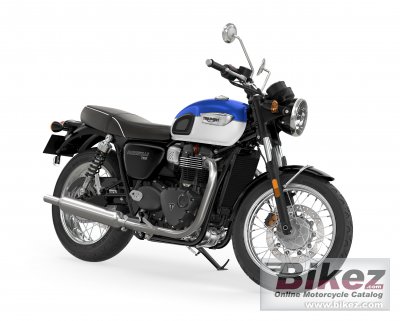

2021 Triumph Bonneville T100 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Triumph Bonneville T100.

Basic Specs

Triumph Bonneville T100
Year2021
MakeTriumph
ModelTriumph Bonneville T100
CostUS$ 10500. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement900.0 ccm (54.92 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke84.6 x 80.0 mm (3.3 x 3.1 inches)
Valves/Cylinder
FuelingInjection. Multipoint sequential electronic injection
IgnitionDigital-inductive type via engine management system
ExhaustBrushed stainless steel 2 into 2 exhaust system with twin silencers
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final Drive
ClutchWet, multi-plate assist clutch
DrivelineX ring chain. Primary drive: Gear.

Performance

Horespower64.1 HP (46.8 kW) @ 7400 RPM
Torque80.0 Nm (8.2 kgf-m or 59.0 ft.lbs) @ 3750 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption3.83 litres/100 km (26.1 km/l or 61.42 mpg)
Fuel Capacity14.50 litres (3.83 US gallons)
Emissions88.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeTubular steel twin cradle. Twin-sided, tubular steel swing arm.
Rake25.5 deg
Trail104 mm (4.1 inches)
Front Suspension41mm cartridge forks
Front Travel120 mm (4.7 inches)
Rear SuspensionTwin RSU”™s, with pre-load adjustment
Rear Travel120 mm (4.7 inches)
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1100 mm (43.3 inches)
Total Length2230 mm (87.8 inches)
Total Width715 mm (28.1 inches)
Ground Clearance
Wheelbase1450 mm (57.1 inches)
Dry Weight
Wet Weight228.2 kg (503.0 pounds)

Wheels & Brakes

Front Tire/Tyre100/90-18
Rear Tire/Tyre150/70-R17
Front BrakesSingle disc. ABS. Brembo 2-piston floating caliper.
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. ABS. Nissin 2-piston floating caliper.
Rear Brake Diameter255 mm (10.0 inches)
WheelsWire spoked. Steel rims.

Comments

It appears you're interested in specifications for the Triumph Bonneville T100. This Allround model is powered by a Twin, four-stroke engine with 900.0 ccm (54.92 cubic inches) of actual displacement before 11.0:1 compression. Fueling is metered via Injection. Multipoint sequential electronic injection allowing this machine to produce its 64.1 HP (46.8 kW) @ 7400 RPM horsepower and 80.0 Nm (8.2 kgf-m or 59.0 ft.lbs) @ 3750 RPM torque. According to our records engine heat of the Triumph Bonneville T100 is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 100/90-18 and the rear is 150/70-R17 . The entire package is supported by the frame, Tubular steel twin cradle. Twin-sided, tubular steel swing arm.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. ABS. Brembo 2-piston floating caliper. front brakes and Single disc. ABS. Nissin 2-piston floating caliper. rear brakes. The Triumph Bonneville T100 was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
