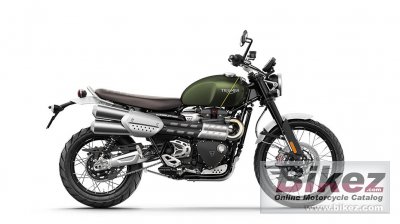

2021 Triumph Scrambler 1200 XC Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Triumph Scrambler 1200 XC.

Basic Specs

Triumph Scrambler 1200 XC
Year2021
MakeTriumph
ModelTriumph Scrambler 1200 XC
CostUS$ 14000. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement1200.0 ccm (73.22 cubic inches)
Type270° crank angle parallel-twin
DetailsTwin, four-stroke
Max RPM
Compression11.1:1
Bore/Stroke97.6 x 80.0 mm (3.8 x 3.1 inches)
Valves/Cylinder2
FuelingInjection. Multipoint sequential electronic fuel injection
Ignition
ExhaustBrushed 2 into 2 exhaust system with brushed high level silencers
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet, multi-plate assist clutch
DrivelineX ring chain

Performance

Horespower88.8 HP (64.8 kW) @ 7400 RPM
Torque110.0 Nm (11.2 kgf-m or 81.1 ft.lbs) @ 3950 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption4.90 litres/100 km (20.4 km/l or 48.00 mpg)
Fuel Capacity16.00 litres (4.23 US gallons)
Emissions113.7 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeTubular steel with aluminium cradle
Rake25.8 deg
Trail121 mm (4.8 inches)
Front SuspensionShowa 45mm fully adjustable upside down forksl
Front Travel200 mm (7.9 inches)
Rear SuspensionFully adjustable Ohlins twin shocks with piggy back reservoir
Rear Travel200 mm (7.9 inches)
Seat
Seat Height840 mm (33.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1200 mm (47.2 inches)
Total Length
Total Width840 mm (33.1 inches)
Ground Clearance
Wheelbase1530 mm (60.2 inches)
Dry Weight205.0 kg (451.9 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre150/70-17
Front BrakesDouble disc. Brembo 2-piston floating caliper
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Brembo 2-piston floating caliper ABS
Rear Brake Diameter255 mm (10.0 inches)
WheelsSpoked wheels

Comments

It appears you're interested in specifications for the Triumph Scrambler 1200 XC. This Classic model is powered by a 270° crank angle parallel-twin Twin, four-stroke engine with 1200.0 ccm (73.22 cubic inches) of actual displacement before 11.1:1 compression. Fueling is metered via Injection. Multipoint sequential electronic fuel injection allowing this machine to produce its 88.8 HP (64.8 kW) @ 7400 RPM horsepower and 110.0 Nm (11.2 kgf-m or 81.1 ft.lbs) @ 3950 RPM torque. According to our records engine heat of the Triumph Scrambler 1200 XC is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 150/70-17 . The entire package is supported by the frame, Tubular steel with aluminium cradle. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Brembo 2-piston floating caliper front brakes and Single disc. Brembo 2-piston floating caliper ABS rear brakes. The Triumph Scrambler 1200 XC was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

USB charging. Immobiliser. Switchable traction control.
