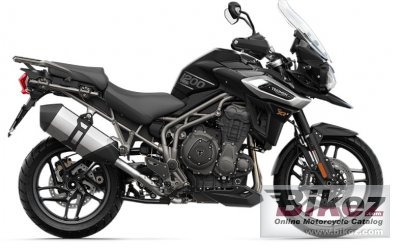

2021 Triumph Tiger 1200 XRx Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Triumph Tiger 1200 XRx.

Basic Specs

Triumph Tiger 1200 XRx
Year2021
MakeTriumph
ModelTriumph Tiger 1200 XRx
CostUS$ 18900. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement1215.0 ccm (74.14 cubic inches)
Type
DetailsIn-line three, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke85.0 x 71.4 mm (3.3 x 2.8 inches)
Valves/Cylinder4
FuelingInjection
Ignition
ExhaustStainless steel 3 into 1, side mounted stainless steel silencer
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet, multi-plate hydraulically operated, torque assist
Driveline

Performance

Horespower141.0 HP (102.9 kW) @ 9350 RPM
Torque122.0 Nm (12.4 kgf-m or 90.0 ft.lbs) @ 7600 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption4.90 litres/100 km (20.4 km/l or 48.00 mpg)
Fuel Capacity20.00 litres (5.28 US gallons)
Emissions113.7 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeTubular steel trellis frame. Single-­sided, cast aluminium alloy swing arm with shaft drive.
Rake23.2 deg
Trail100 mm (3.9 inches)
Front SuspensionWP 48 mm upside down forks, electronically adjustable damping,
Front Travel168 mm (6.6 inches)
Rear SuspensionWP monoshock, electronically adjustable semi active damping,
Rear Travel158 mm (6.2 inches)
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height855 mm (33.7 inches) If adjustable, highest setting.
Total Height1450 mm (57.1 inches)
Total Length2248 mm (88.5 inches)
Total Width830 mm (32.7 inches)
Ground Clearance
Wheelbase1520 mm (59.8 inches)
Dry Weight244.0 kg (537.9 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-R19
Rear Tire/Tyre170/60-R17
Front BrakesDouble disc. Floating discs, radially mounted monobloc Brembo calipers, 4-piston, switchable ABS.
Front Brake Diameter305 mm (12.0 inches)
Rear BrakesSingle disc. Nissin 2-piston sliding caliper, Switchable ABS
Rear Brake Diameter282 mm (11.1 inches)
WheelsCast aluminum alloy 10-spoke

Comments

It appears you're interested in specifications for the Triumph Tiger 1200 XRx. This Allround model is powered by a In-line three, four-stroke engine with 1215.0 ccm (74.14 cubic inches) of actual displacement before 11.0:1 compression. Fueling is metered via Injection allowing this machine to produce its 141.0 HP (102.9 kW) @ 9350 RPM horsepower and 122.0 Nm (12.4 kgf-m or 90.0 ft.lbs) @ 7600 RPM torque. According to our records engine heat of the Triumph Tiger 1200 XRx is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-R19 and the rear is 170/60-R17 . The entire package is supported by the frame, Tubular steel trellis frame. Single-­sided, cast aluminium alloy swing arm with shaft drive.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Floating discs, radially mounted monobloc Brembo calipers, 4-piston, switchable ABS. front brakes and Single disc. Nissin 2-piston sliding caliper, Switchable ABS rear brakes. The Triumph Tiger 1200 XRx was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Ride-by-wire. Windscreen.
