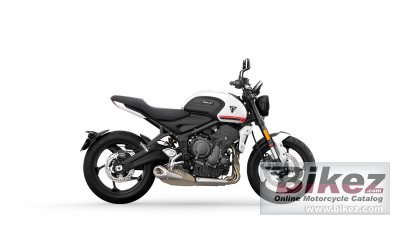

2021 Triumph Trident 660 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Triumph Trident 660.

Basic Specs

Triumph Trident 660
Year2021
MakeTriumph
ModelTriumph Trident 660
CostUS$ 7995. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement660.0 ccm (40.27 cubic inches)
Type
DetailsIn-line three, four-stroke
Max RPM
Compression12.0:1
Bore/Stroke74.0 x 51.1 mm (2.9 x 2.0 inches)
Valves/Cylinder4
FuelingInjection. Multipoint sequential electronic fuel injection with electronic throttle control
Ignition
ExhaustStainless steel 3 into 1 header system with low single sided stainless steel silencer
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet. multi-plate. slip and assist
DrivelineX-ring chain

Performance

Horespower81.0 HP (59.1 kW) @ 10250 RPM
Torque63.7 Nm (6.5 kgf-m or 47.0 ft.lbs) @ 6250 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity14.00 litres (3.70 US gallons)
Emissions

Chassis

Frame TypeTubular steel perimeter
Rake24.6 deg
Trail107 mm (4.2 inches)
Front SuspensionShowa 41mm upside down separate function forks (SFF)
Front Travel120 mm (4.7 inches)
Rear SuspensionShowa monoshock RSU. with preload adjustment
Rear Travel134 mm (5.3 inches)
Seat
Seat Height805 mm (31.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1089 mm (42.9 inches)
Total Length2020 mm (79.5 inches)
Total Width795 mm (31.3 inches)
Ground Clearance
Wheelbase1401 mm (55.2 inches)
Dry Weight189.0 kg (416.7 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-R17
Rear Tire/Tyre180/55-R17
Front BrakesDouble disc. ABS. Two-piston calipers.
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. ABS. Single-piston caliper.
Rear Brake Diameter255 mm (10.0 inches)
Wheels

Comments

It appears you're interested in specifications for the Triumph Trident 660. This Naked bike model is powered by a In-line three, four-stroke engine with 660.0 ccm (40.27 cubic inches) of actual displacement before 12.0:1 compression. Fueling is metered via Injection. Multipoint sequential electronic fuel injection with electronic throttle control allowing this machine to produce its 81.0 HP (59.1 kW) @ 10250 RPM horsepower and 63.7 Nm (6.5 kgf-m or 47.0 ft.lbs) @ 6250 RPM torque. According to our records engine heat of the Triumph Trident 660 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-R17 and the rear is 180/55-R17 . The entire package is supported by the frame, Tubular steel perimeter. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Two-piston calipers. front brakes and Single disc. ABS. Single-piston caliper. rear brakes. The Triumph Trident 660 was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
