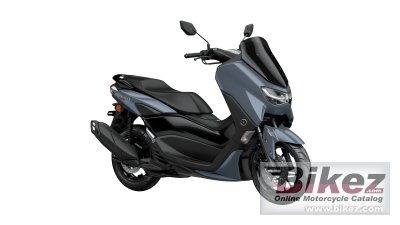

2021 Yamaha NMAX 155 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Yamaha NMAX 155.

Basic Specs

Yamaha NMAX 155
Year2021
MakeYamaha
ModelYamaha NMAX 155
CostUS$ 2195. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement155.0 ccm (9.46 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.2:1
Bore/Stroke58.0 x 58.7 mm (2.3 x 2.3 inches)
Valves/Cylinder4
FuelingInjection
IgnitionTransistorised
Exhaust
LubricationWet sump
CoolingLiquid

Drivetrain

GearboxAutomatic
Final Drive
ClutchDry centrifugal
DrivelineV-Belt Automatic

Performance

Horespower12.1 HP (8.8 kW) @ 7500 RPM
Torque14.4 Nm (1.5 kgf-m or 10.6 ft.lbs) @ 6000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity6.60 litres (1.74 US gallons)
Emissions

Chassis

Frame TypeBackbone
Rake26.0 deg
Trail92 mm (3.6 inches)
Front SuspensionTelescopic fork
Front Travel110 mm (4.3 inches)
Rear SuspensionUnit Swing, monoshock
Rear Travel84 mm (3.3 inches)
Seat
Seat Height765 mm (30.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1115 mm (43.9 inches)
Total Length1955 mm (77.0 inches)
Total Width740 mm (29.1 inches)
Ground Clearance135 mm (5.3 inches)
Wheelbase1350 mm (53.1 inches)
Dry Weight
Wet Weight127.0 kg (280.0 pounds)

Wheels & Brakes

Front Tire/Tyre110/70-13
Rear Tire/Tyre130/70-13
Front BrakesSingle disc. Hydraulic. ABS.
Front Brake Diameter230 mm (9.1 inches)
Rear BrakesSingle disc. ABS.
Rear Brake Diameter230 mm (9.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Yamaha NMAX 155. This Scooter model is powered by a Single cylinder, four-stroke engine with 155.0 ccm (9.46 cubic inches) of actual displacement before 11.2:1 compression. Fueling is metered via Injection allowing this machine to produce its 12.1 HP (8.8 kW) @ 7500 RPM horsepower and 14.4 Nm (1.5 kgf-m or 10.6 ft.lbs) @ 6000 RPM torque. According to our records engine heat of the Yamaha NMAX 155 is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 110/70-13 and the rear is 130/70-13 . The entire package is supported by the frame, Backbone. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Hydraulic. ABS. front brakes and Single disc. ABS. rear brakes. The Yamaha NMAX 155 was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
