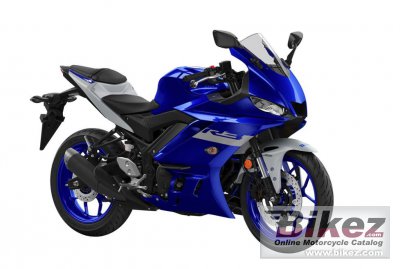

2021 Yamaha R3 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Yamaha R3.

Basic Specs

Yamaha R3
Year2021
MakeYamaha
ModelYamaha R3
TypeSport
Cost

Engine

Displacement321.0 ccm (19.59 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression11.2:1
Bore/Stroke68.0 x 44.1 mm (2.7 x 1.7 inches)
Valves/Cylinder
FuelingInjection. Electronic injection
IgnitionTCI
Exhaust
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox
Final Drive
Clutch
Driveline

Performance

Horespower41.4 HP (30.2 kW) @ 10750 RPM
Torque28.8 Nm (2.9 kgf-m or 21.2 ft.lbs) @ 9000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption3.80 litres/100 km (26.3 km/l or 61.90 mpg)
Fuel Capacity14.00 litres (3.70 US gallons)
Emissions88.2 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeDiamond
Rake25.0 deg
Trail95 mm (3.7 inches)
Front SuspensionTelescopic fork
Front Travel130 mm (5.1 inches)
Rear SuspensionSwingarm
Rear Travel125 mm (4.9 inches)
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1140 mm (44.9 inches)
Total Length2090 mm (82.3 inches)
Total Width730 mm (28.7 inches)
Ground Clearance160 mm (6.3 inches)
Wheelbase1405 mm (55.3 inches)
Dry Weight
Wet Weight170.0 kg (374.8 pounds)

Wheels & Brakes

Front Tire/Tyre110/70-ZR17M/C
Rear Tire/Tyre140/70-ZR17/C
Front BrakesSingle disc. Hydraulic
Front Brake Diameter298 mm (11.7 inches)
Rear BrakesSingle disc. Hydraulic.
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Yamaha R3. This Sport model is powered by a In-line four, four-stroke engine with 321.0 ccm (19.59 cubic inches) of actual displacement before 11.2:1 compression. Fueling is metered via Injection. Electronic injection allowing this machine to produce its 41.4 HP (30.2 kW) @ 10750 RPM horsepower and 28.8 Nm (2.9 kgf-m or 21.2 ft.lbs) @ 9000 RPM torque. According to our records engine heat of the Yamaha R3 is moderated by Liquid. You'll need to get familiar with the transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 110/70-ZR17M/C and the rear is 140/70-ZR17/C . The entire package is supported by the frame, Diamond. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Hydraulic front brakes and Single disc. Hydraulic. rear brakes. The Yamaha R3 was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
