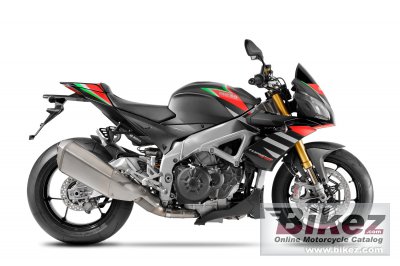

2022 Aprilia Tuono V4 Factory Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2022 Aprilia Tuono V4 Factory.

Basic Specs

Aprilia Tuono V4 Factory
Year2022
MakeAprilia
ModelAprilia Tuono V4 Factory
Cost

Engine

Displacement1077.0 ccm (65.72 cubic inches)
TypeLongitudinal 65° V-4
DetailsV4, four-stroke
Max RPM
Compression
Bore/Stroke81.0 x 52.3 mm (3.2 x 2.1 inches)
Valves/Cylinder4
FuelingInjection. Airbox with front dynamic air intakes. 4 Weber-Marelli 48-mm throttle bodies with 4 injectors and latest generation Ride-by-Wire engine management. Choice of three different engine maps selectable by the rider with bike in motion: T (Track), S (Sport), R
IgnitionMagneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and ”œstick-coil” type coils
Exhaust4 into 2 into 1 layout, single oxygen sensor, lateral single silencer with ECU-controlled bypass valve and integrated trivalent catalytic converter (Euro 3)
LubricationWet sump lubrication system with oil radiator and two oil pumps (lubrication and cooling)
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchMultiplate wet clutch with mechanical slipper system.
DrivelineStraight cut gears and integrated flexible coupling, drive ratio: 73/44 primary drive. Chain 42/16 final drive.

Performance

Horespower175.0 HP (127.7 kW) @ 11300 RPM
Torque121.0 Nm (12.3 kgf-m or 89.2 ft.lbs) @ 9000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption7.20 litres/100 km (13.9 km/l or 32.67 mpg)
Fuel Capacity17.90 litres (4.73 US gallons)
Emissions167.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeAluminium dual beam chassis with cast and pressed sheet elements. (Sachs steering damper on APRC version)
Rake27.0 deg
Trail100 mm (3.9 inches)
Front SuspensionÖhlins NIX upside-down fork, Ø 43 mm stanchions. Electronics management system Ohlins Smart EC 2.0 (OBTi).
Front Travel125 mm (4.9 inches)
Rear SuspensionDouble-sided aluminium swingarm Öhlins TTX single shock absorber with piggy-back. Electronics management system Ohlins Smart EC 2.0 (OBTi).
Rear Travel130 mm (5.1 inches)
Seat
Seat Height825 mm (32.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1090 mm (42.9 inches)
Total Length2070 mm (81.5 inches)
Total Width810 mm (31.9 inches)
Ground Clearance125 mm (4.9 inches)
Wheelbase1450 mm (57.1 inches)
Dry Weight185.0 kg (407.9 pounds)
Wet Weight209.0 kg (460.8 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre200/55-ZR17
Front BrakesDouble disc. ABS. Floating double disc with aluminium flange Brembo M50 4-piston mono-block radial calipers Radial pump and metal braid brake pipe.
Front Brake Diameter330 mm (13.0 inches)
Rear BrakesSingle disc. ABS. Brembo Ø 32 mm 2 isolated piston caliper Pump with integrated tank and metal braid pipe.
Rear Brake Diameter220 mm (8.7 inches)
WheelsCast aluminium wheels with 3 split spoke design.

Comments

It appears you're interested in specifications for the Aprilia Tuono V4 Factory. This Naked bike model is powered by a Longitudinal 65° V-4 V4, four-stroke engine with 1077.0 ccm (65.72 cubic inches) of actual displacement before compression. Fueling is metered via Injection. Airbox with front dynamic air intakes. 4 Weber-Marelli 48-mm throttle bodies with 4 injectors and latest generation Ride-by-Wire engine management. Choice of three different engine maps selectable by the rider with bike in motion: T (Track), S (Sport), R allowing this machine to produce its 175.0 HP (127.7 kW) @ 11300 RPM horsepower and 121.0 Nm (12.3 kgf-m or 89.2 ft.lbs) @ 9000 RPM torque. According to our records engine heat of the Aprilia Tuono V4 Factory is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 200/55-ZR17 . The entire package is supported by the frame, Aluminium dual beam chassis with cast and pressed sheet elements. (Sachs steering damper on APRC version). We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Floating double disc with aluminium flange Brembo M50 4-piston mono-block radial calipers Radial pump and metal braid brake pipe. front brakes and Single disc. ABS. Brembo Ø 32 mm 2 isolated piston caliper Pump with integrated tank and metal braid pipe. rear brakes. The Aprilia Tuono V4 Factory was launched in 2022, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Ride By Wire with 3 engine mappings (Sport, Race, Track). APRC System (Aprilia Performance Ride Control), which includes Traction Control(ATC), Wheelie Control (AWC), Launch Control (ALC), cruise control (ACC) and speed limiter (APL).
