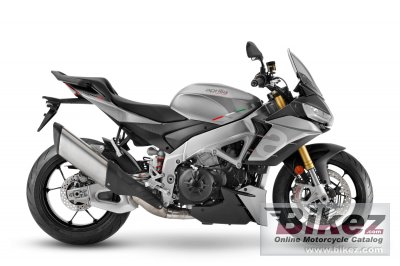

These are the known mechanical and performance specifications for your 2022 Aprilia Tuono V4 .
Basic Specs
Engine
Displacement1077.0 ccm (65.72 cubic inches)
TypeLongitudinal 65° V-4
DetailsV4, four-stroke
Max RPM
Compression13.6:1
Bore/Stroke81.0 x 52.3 mm (3.2 x 2.1 inches)
Valves/Cylinder4
FuelingInjection. Airbox with front dynamic air intakes. 4 Weber-Marelli 48-mm throttle bodies with 4 injectors and latest generation Ride-by-Wire engine management that the rider can select on the fly: T (Track), S (Sport), R (Race).
IgnitionMagneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and ”œstick-coil” type coils
Exhaust4 into 2 into 1 layout, single oxygen sensor, lateral single silencer with ECU-controlled bypass valve and integrated trivalent catalytic converter (Euro 3)
LubricationWet sump lubrication system with oil radiator and two oil pumps (lubrication and cooling)
CoolingLiquid
Drivetrain
Gearbox6-speed
Final Drive
ClutchMultiplate wet clutch with mechanical slipper system.
DrivelineStraight cut gears and integrated flexible coupling, drive ratio: 73/44 primary drive. Chain 42/16 final drive.
Performance
Horespower175.0 HP (127.7 kW) @ 11350 RPM
Torque121.0 Nm (12.3 kgf-m or 89.2 ft.lbs) @ 9000 RPM
Top Speed
Fuel Economy & Polution
Fuel Consumption7.20 litres/100 km (13.9 km/l or 32.67 mpg)
Fuel Capacity17.90 litres (4.73 US gallons)
Emissions167.0 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeAluminium dual beam chassis with cast and pressed sheet elements. (Sachs steering damper on APRC version)
Rake24.8 deg
Trail100 mm (3.9 inches)
Front SuspensionSachs upside-down ”œone by one” fork, Ø 43 mm stanchions. Forged aluminium radial calliper mounting bracket. Completely adjustable spring preload and hydraulic compression and rebound damping.
Front Travel120 mm (4.7 inches)
Rear SuspensionSachs fully adjustable single shock absorber
Rear Travel129 mm (5.1 inches)
Seat
Seat Height87 mm (3.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1090 mm (42.9 inches)
Total Length2070 mm (81.5 inches)
Total Width810 mm (31.9 inches)
Ground Clearance125 mm (4.9 inches)
Wheelbase1452 mm (57.2 inches)
Dry Weight185.0 kg (407.9 pounds)
Wet Weight209.0 kg (460.8 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/55-ZR17
Front BrakesDouble disc. ABS. Floating stainless steel discs with lightweight stainless steel rotor with 6 studs. Brembo radial callipers with 4 diam. horizontally opposed 32 mm pistons. Sintered pads. Axial pump master cylinder and metal braided brake hoses.
Front Brake Diameter330 mm (13.0 inches)
Rear BrakesSingle disc. ABS. Brembo floating calliper.
Rear Brake Diameter220 mm (8.7 inches)
WheelsCast aluminium wheels with 3 split spoke design.
Comments
APRC System (Aprilia Performance Ride Control), which includes TractionControl (ATC), Wheelie Control (AWC), Launch Control (ALC), cruise control (ACC) and speed limiter (APL), all of which can be configured and deactivated independently
