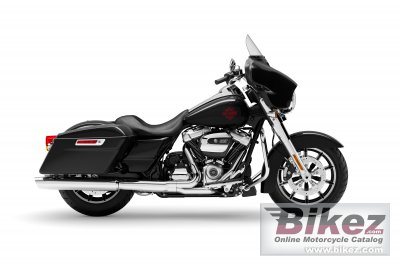

These are the known mechanical and performance specifications for your 2022 Harley-Davidson Electra Glide Standard.
Basic Specs
Year2022
MakeHarley-Davidson
ModelHarley-Davidson Electra Glide Standard
TypeTouring
CostUS$ 19429. MSRP depends on country, taxes, accessories, etc.
Engine
Displacement1746.0 ccm (106.54 cubic inches)
TypeMilwaukee-Eight™ 107
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke100.0 x 111.0 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustChrome, 2-1-2 dual exhaust with tapered mufflers
Lubrication
CoolingOil & air
Drivetrain
Gearbox6-speed
Final Drive
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive
Performance
Horespower90.0 HP (65.7 kW) @ 5450 RPM
Torque150.5 Nm (15.3 kgf-m or 111.0 ft.lbs) @ 3250 RPM
Top Speed
Fuel Economy & Polution
Fuel Consumption5.47 litres/100 km (18.3 km/l or 43.00 mpg)
Fuel Capacity22.71 litres (6.00 US gallons)
Emissions126.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake26.0 deg
Trail170 mm (6.7 inches)
Front Suspension49 mm Dual Bending Valve fork
Front Travel
Rear SuspensionPremium Low Hand-Adjustable Rear Suspension
Rear Travel
Seat
Seat Height663 mm (26.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2400 mm (94.5 inches)
Total Width
Ground Clearance119 mm (4.7 inches)
Wheelbase1625 mm (64.0 inches)
Dry Weight354.3 kg (781.0 pounds)
Wet Weight372.0 kg (820.0 pounds)
Wheels & Brakes
Front Tire/Tyre130/80-B17
Rear Tire/Tyre180/65-B16
Front BrakesDouble disc. Optional ABS. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. Optional ABS. 4-piston
Rear Brake Diameter
WheelsImpeller Cast Aluminum wheels. Dunlop® Harley-Davidson Series, bias blackwall tires.
Comments
Windshield. Cruise control. Optional Alarm.
