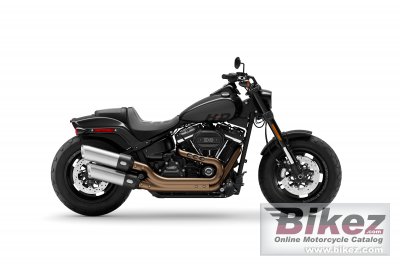

These are the known mechanical and performance specifications for your 2022 Harley-Davidson Fat Bob 114.
Basic Specs
Year2022
MakeHarley-Davidson
ModelHarley-Davidson Fat Bob 114
TypeCustom / cruiser
CostUS$ 19149. MSRP depends on country, taxes, accessories, etc.
Engine
Displacement1868.0 ccm (113.99 cubic inches)
TypeMilwaukee-Eight® 114
DetailsV2, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke102.0 x 114.0 mm (4.0 x 4.5 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
Exhaust2-into-1-into-2 dual side; catalyst in header
Lubrication
CoolingAir
Drivetrain
Gearbox6-speed
Final Drive
ClutchMulti-plate with diaphragm spring in oil bath
Driveline
Performance
Horespower94.0 HP (68.6 kW) @ 5020 RPM
Torque160.0 Nm (16.3 kgf-m or 118.0 ft.lbs) @ 3500 RPM
Top Speed
Fuel Economy & Polution
Fuel Consumption5.00 litres/100 km (20.0 km/l or 47.04 mpg)
Fuel Capacity13.60 litres (3.59 US gallons)
Emissions116.0 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake28.0 deg
Trail132 mm (5.2 inches)
Front SuspensionSingle cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring
Front Travel
Rear SuspensionHidden, free piston, coil-over monoshock; 56mm stroke; toolless hydraulic preload adjustment
Rear Travel
Seat
Seat Height704 mm (27.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2340 mm (92.1 inches)
Total Width
Ground Clearance120 mm (4.7 inches)
Wheelbase1615 mm (63.6 inches)
Dry Weight296.2 kg (653.0 pounds)
Wet Weight306.2 kg (675.0 pounds)
Wheels & Brakes
Front Tire/Tyre150/80-16
Rear Tire/Tyre180/70-B16
Front BrakesDouble disc. ABS. 4-piston.
Front Brake Diameter
Rear BrakesSingle disc. ABS. 2-piston.
Rear Brake Diameter
WheelsDenim black, Structure cast aluminum with laser etched graphics wheels. Dunlop® Harley-Davidson Series, bias blackwall tires.
