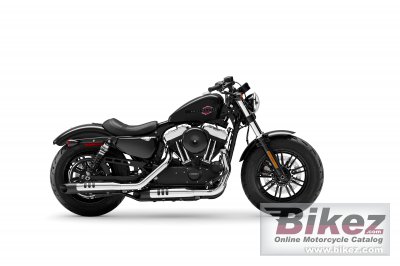

2022 Harley-Davidson Forty-Eight Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2022 Harley-Davidson Forty-Eight.

Basic Specs

Harley-Davidson Forty-Eight
Year2022
MakeHarley-Davidson
ModelHarley-Davidson Forty-Eight
CostUS$ 11799. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement1202.0 ccm (73.35 cubic inches)
TypeEvolution® engine
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke88.9 x 96.8 mm (3.5 x 3.8 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustBlack, staggered exhaust with slash-cut mufflers
LubricationDry sump
CoolingAir

Drivetrain

Gearbox6-speed
Final Drive
ClutchMulti-plate with diaphragm spring in oil bath
Driveline38/57 ratio

Performance

Horespower65.0 HP (47.4 kW) @ 6000 RPM
Torque99.0 Nm (10.1 kgf-m or 73.0 ft.lbs) @ 3500 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption4.90 litres/100 km (20.4 km/l or 48.00 mpg)
Fuel Capacity7.90 litres (2.09 US gallons)
Emissions113.7 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake30.2 deg
Trail135 mm (5.3 inches)
Front Suspension49 mm fork set, free valve right hand and cartridge style left hand
Front Travel
Rear SuspensionVariable rate spring over 36mm piston nitrogen gas-charged emulsion style shock with thread style preload adjustment
Rear Travel
Seat
Seat Height665 mm (26.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2164 mm (85.2 inches)
Total Width
Ground Clearance110 mm (4.3 inches)
Wheelbase1495 mm (58.9 inches)
Dry Weight247.0 kg (544.5 pounds)
Wet Weight252.0 kg (555.6 pounds)

Wheels & Brakes

Front Tire/Tyre130/90-B16
Rear Tire/Tyre150/80-B16
Front BrakesSingle disc. Dual-piston. Optional ABS.
Front Brake Diameter
Rear BrakesSingle disc. Dual-piston. Optional ABS.
Rear Brake Diameter
WheelsBlack, Split 9-Spoke Cast Aluminum with Machined Highlights

Comments

It appears you're interested in specifications for the Harley-Davidson Forty-Eight. This Custom / cruiser model is powered by a Evolution® engine V2, four-stroke engine with 1202.0 ccm (73.35 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection allowing this machine to produce its 65.0 HP (47.4 kW) @ 6000 RPM horsepower and 99.0 Nm (10.1 kgf-m or 73.0 ft.lbs) @ 3500 RPM torque. According to our records engine heat of the Harley-Davidson Forty-Eight is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 130/90-B16 and the rear is 150/80-B16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Dual-piston. Optional ABS. front brakes and Single disc. Dual-piston. Optional ABS. rear brakes. The Harley-Davidson Forty-Eight was launched in 2022, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
