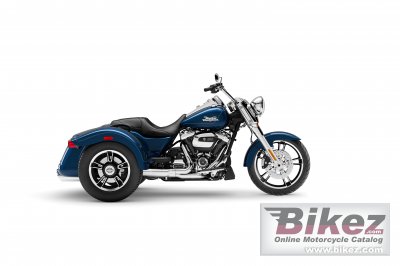

2022 Harley-Davidson Freewheeler Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2022 Harley-Davidson Freewheeler.

Basic Specs

Harley-Davidson Freewheeler
Year2022
MakeHarley-Davidson
ModelHarley-Davidson Freewheeler
CostUS$ 28499. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement1868.0 ccm (113.99 cubic inches)
TypeMilwaukee-Eight™ 114
DetailsV2, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke102.0 x 114.3 mm (4.0 x 4.5 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustShorty slash down-style chrome finish mufflers
Lubrication
CoolingOil & air

Drivetrain

Gearbox6-speed
Final Drive
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive

Performance

Horespower100.0 HP (73.0 kW) @ 5020 RPM
Torque165.4 Nm (16.9 kgf-m or 122.0 ft.lbs) @ 2250 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption5.47 litres/100 km (18.3 km/l or 43.00 mpg)
Fuel Capacity22.71 litres (6.00 US gallons)
Emissions126.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake26.0 deg
Trail101 mm (4.0 inches)
Front SuspensionTelescopic fork, 49mm dual bending valve
Front Travel
Rear SuspensionHand-adjustable emulsion rear suspension
Rear Travel
Seat
Seat Height665 mm (26.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2615 mm (103.0 inches)
Total Width
Ground Clearance125 mm (4.9 inches)
Wheelbase1670 mm (65.7 inches)
Dry Weight492.0 kg (1,084.7 pounds)
Wet Weight507.1 kg (1,118.0 pounds)

Wheels & Brakes

Front Tire/Tyre130/60-B19
Rear Tire/Tyre205/65-R15
Front BrakesDouble disc. 4 piston caliper. ABS.
Front Brake Diameter
Rear BrakesSingle disc. 2-piston caliper. ABS.
Rear Brake Diameter
WheelsEnforcer Cast Aluminum. Dunlop® Harley-Davidson Series tires.

Comments

It appears you're interested in specifications for the Harley-Davidson Freewheeler. This Custom / cruiser model is powered by a Milwaukee-Eight™ 114 V2, four-stroke engine with 1868.0 ccm (113.99 cubic inches) of actual displacement before 10.5:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection allowing this machine to produce its 100.0 HP (73.0 kW) @ 5020 RPM horsepower and 165.4 Nm (16.9 kgf-m or 122.0 ft.lbs) @ 2250 RPM torque. According to our records engine heat of the Harley-Davidson Freewheeler is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 130/60-B19 and the rear is 205/65-R15 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. 4 piston caliper. ABS. front brakes and Single disc. 2-piston caliper. ABS. rear brakes. The Harley-Davidson Freewheeler was launched in 2022, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Trike. Cruise control. Foot actuated dual parking brake.
