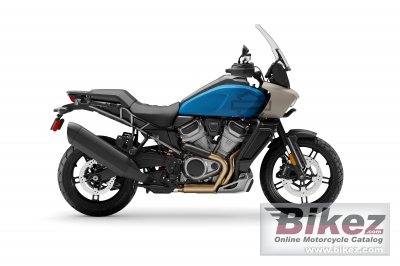

2022 Harley-Davidson Pan America 1250 Special Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2022 Harley-Davidson Pan America 1250 Special.

Basic Specs

Harley-Davidson Pan America 1250 Special
Year2022
MakeHarley-Davidson
ModelHarley-Davidson Pan America 1250 Special
CostUS$ 19999. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement1250.4 ccm (76.30 cubic inches)
TypeRevolution® Max 1250 engine. Variable Valve Timing (VVT).
DetailsV2, four-stroke
Max RPM
Compression13.0:1
Bore/Stroke104.9 x 72.4 mm (4.1 x 2.9 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
Exhaust2-into-1-into-1; catalyst in header
LubricationDry sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
Clutch
Driveline

Performance

Horespower150.0 HP (109.5 kW) @ 9000 RPM
Torque127.5 Nm (13.0 kgf-m or 94.0 ft.lbs) @ 6750 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption5.11 litres/100 km (19.6 km/l or 46.03 mpg)
Fuel Capacity21.20 litres (5.60 US gallons)
Emissions118.6 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake25.0 deg
Trail109 mm (4.3 inches)
Front Suspension47mm inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps.
Front Travel190 mm (7.5 inches)
Rear SuspensionLinkage-mounted monoshock with automatic electronic preload control and semi-active compression and rebound damping
Rear Travel
SeatTwo-up seat.
Seat Height813 mm (32.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2271 mm (89.4 inches)
Total Width
Ground Clearance175 mm (6.9 inches)
Wheelbase1585 mm (62.4 inches)
Dry Weight242.2 kg (534.0 pounds)
Wet Weight258.1 kg (569.0 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-R19
Rear Tire/Tyre170/60-R17
Front BrakesDouble disc. Radially mounted, monoblock, 4-piston caliper. ABS.
Front Brake Diameter
Rear BrakesSingle disc. Floating, single piston caliper. ABS.
Rear Brake Diameter
WheelsAluminum cast, satin black. Michelin® Scorcher® ”œAdventure”, Radial tires.

Comments

It appears you're interested in specifications for the Harley-Davidson Pan America 1250 Special. This Super motard model is powered by a Revolution® Max 1250 engine. Variable Valve Timing (VVT). V2, four-stroke engine with 1250.4 ccm (76.30 cubic inches) of actual displacement before 13.0:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection allowing this machine to produce its 150.0 HP (109.5 kW) @ 9000 RPM horsepower and 127.5 Nm (13.0 kgf-m or 94.0 ft.lbs) @ 6750 RPM torque. According to our records engine heat of the Harley-Davidson Pan America 1250 Special is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-R19 and the rear is 170/60-R17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Radially mounted, monoblock, 4-piston caliper. ABS. front brakes and Single disc. Floating, single piston caliper. ABS. rear brakes. The Harley-Davidson Pan America 1250 Special was launched in 2022, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Windscreen, optional adaptive ride height, cruise control, six-axis IMU, customizable ride modes, USB-C, Bluetooth connectivity and moving map navigation.
