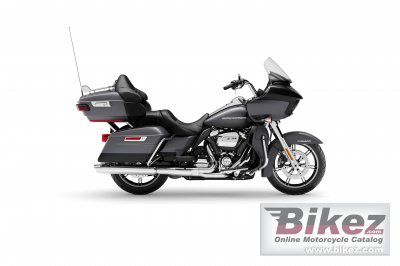

These are the known mechanical and performance specifications for your 2022 Harley-Davidson Road Glide Limited.
Basic Specs
Year2022
MakeHarley-Davidson
ModelHarley-Davidson Road Glide Limited
TypeTouring
CostUS$ 28729. MSRP depends on country, taxes, accessories, etc.
Engine
Displacement1868.0 ccm (113.99 cubic inches)
TypeTwin-Cooled™ Milwaukee-Eight® 114
DetailsV2, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke102.0 x 114.3 mm (4.0 x 4.5 inches)
Valves/Cylinder
FuelingInjection. ESPFI
Ignition
Exhaust2:1:2 dual exhaust with 4 in. tapered mufflers
LubricationDry sump
CoolingOil & air
Drivetrain
Gearbox6-speed
Final Drive
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive
Performance
Horespower89.0 HP (65.0 kW) @ 5450 RPM
Torque165.4 Nm (16.9 kgf-m or 122.0 ft.lbs) @ 3000 RPM
Top Speed
Fuel Economy & Polution
Fuel Consumption5.47 litres/100 km (18.3 km/l or 43.00 mpg)
Fuel Capacity22.71 litres (6.00 US gallons)
Emissions126.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake26.0 deg
Trail170 mm (6.7 inches)
Front SuspensionTelescopic fork, 49 mm dual bending valve
Front Travel
Rear SuspensionTwin shocks, premium low hand-adjustable
Rear Travel
Seat
Seat Height691 mm (27.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2596 mm (102.2 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1625 mm (64.0 inches)
Dry Weight406.9 kg (897.0 pounds)
Wet Weight422.8 kg (932.0 pounds)
Wheels & Brakes
Front Tire/Tyre130/70-B18
Rear Tire/Tyre180/55-B18
Front BrakesDouble disc. ABS. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. ABS. 4-piston
Rear Brake Diameter
WheelsSlicer II cast aluminum with clear coat. Dunlop® Harley-Davidson Series tires.
Comments
Small windshield. Cruise control. Alarm. Infotainment. Bluetooth. USB.
