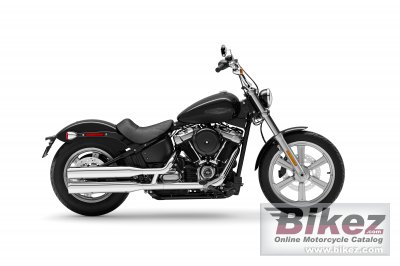

2022 Harley-Davidson Softail Standard Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2022 Harley-Davidson Softail Standard.

Basic Specs

Harley-Davidson Softail Standard
Year2022
MakeHarley-Davidson
ModelHarley-Davidson Softail Standard
CostUS$ 13949. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement1753.5 ccm (107.00 cubic inches)
TypeMilwaukee-Eight® 107
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke100.0 x 111.1 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
Exhaust2-into-2 shotgun; catalyst in muffler
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final Drive
Clutch
DrivelineChain, 34/46 ratio primary

Performance

Horespower
Torque149.2 Nm (15.2 kgf-m or 110.0 ft.lbs) @ 3000 RPM
Top Speed170.0 km/h (105.6 mph)

Fuel Economy & Polution

Fuel Consumption5.00 litres/100 km (20.0 km/l or 47.04 mpg)
Fuel Capacity13.25 litres (3.50 US gallons)
Emissions116.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake30.0 deg
Trail157 mm (6.2 inches)
Front SuspensionDual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring
Front Travel142 mm (5.6 inches)
Rear SuspensionHidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment
Rear Travel103 mm (4.1 inches)
Seat
Seat Height655 mm (25.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2319 mm (91.3 inches)
Total Width
Ground Clearance124 mm (4.9 inches)
Wheelbase1631 mm (64.2 inches)
Dry Weight291.2 kg (642.0 pounds)
Wet Weight297.1 kg (655.0 pounds)

Wheels & Brakes

Front Tire/Tyre100/90-B19
Rear Tire/Tyre150/80-B16
Front BrakesSingle disc. 4-piston fixed. Optional ABS.
Front Brake Diameter292 mm (11.5 inches)
Rear BrakesSingle disc. 2-piston floating. Optional ABS.
Rear Brake Diameter292 mm (11.5 inches)
WheelsSilver, Annihilator cast aluminum.

Comments

It appears you're interested in specifications for the Harley-Davidson Softail Standard. This Custom / cruiser model is powered by a Milwaukee-Eight® 107 V2, four-stroke engine with 1753.5 ccm (107.00 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection allowing this machine to produce its horsepower and 149.2 Nm (15.2 kgf-m or 110.0 ft.lbs) @ 3000 RPM torque. According to our records engine heat of the Harley-Davidson Softail Standard is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 100/90-B19 and the rear is 150/80-B16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. 4-piston fixed. Optional ABS. front brakes and Single disc. 2-piston floating. Optional ABS. rear brakes. The Harley-Davidson Softail Standard was launched in 2022, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
