2022 Harley-Davidson Tri Glide Ultra Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2022 Harley-Davidson Tri Glide Ultra.

Basic Specs

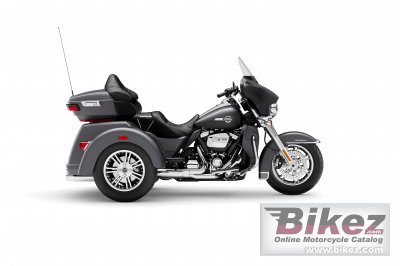

Harley-Davidson Tri Glide Ultra
Year2022
MakeHarley-Davidson
ModelHarley-Davidson Tri Glide Ultra
CostUS$ 35699. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement1868.0 ccm (113.99 cubic inches)
TypeTwin-Cooled™ Milwaukee-Eight® 114
DetailsV2, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke102.0 x 114.3 mm (4.0 x 4.5 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
Exhaust2-1-2 dual exhaust with tapered mufflers
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final Drive
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive

Performance

Horespower100.0 HP (73.0 kW) @ 5000 RPM
Torque164.1 Nm (16.7 kgf-m or 121.0 ft.lbs) @ 3250 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity22.71 litres (6.00 US gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake26.0 deg
Trail100 mm (3.9 inches)
Front SuspensionTelescopic fork, 49mm dual bending valve
Front Travel
Rear SuspensionHand-adjustable emulsion rear suspension
Rear Travel
Seat
Seat Height688 mm (27.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2670 mm (105.1 inches)
Total Width
Ground Clearance125 mm (4.9 inches)
Wheelbase1670 mm (65.7 inches)
Dry Weight545.7 kg (1,203.0 pounds)
Wet Weight563.8 kg (1,243.0 pounds)

Wheels & Brakes

Front Tire/TyreMT90-B16
Rear Tire/Tyre205/65-R15
Front BrakesDouble disc. ABS. 4 piston.
Front Brake Diameter
Rear BrakesSingle disc. ABS. Integrated park brake.
Rear Brake Diameter
WheelsBlack, 7-spoke cast aluminum. Two rear wheels. Dunlop® Harley-Davidson Series tires.

Comments

It appears you're interested in specifications for the Harley-Davidson Tri Glide Ultra. This Touring model is powered by a Twin-Cooled™ Milwaukee-Eight® 114 V2, four-stroke engine with 1868.0 ccm (113.99 cubic inches) of actual displacement before 10.5:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection allowing this machine to produce its 100.0 HP (73.0 kW) @ 5000 RPM horsepower and 164.1 Nm (16.7 kgf-m or 121.0 ft.lbs) @ 3250 RPM torque. According to our records engine heat of the Harley-Davidson Tri Glide Ultra is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is MT90-B16 and the rear is 205/65-R15 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. 4 piston. front brakes and Single disc. ABS. Integrated park brake. rear brakes. The Harley-Davidson Tri Glide Ultra was launched in 2022, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Trike. Windshield. Cruise control. Alarm. Infotainment. USB. Bluetooth. Foot actuated dual parking brake.
