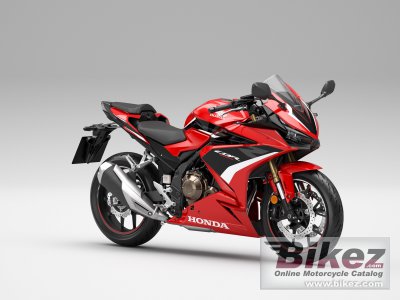

2022 Honda CBR500R Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2022 Honda CBR500R.

Basic Specs

Honda CBR500R
Year2022
MakeHonda
ModelHonda CBR500R
TypeSport
Cost

Engine

Displacement471.0 ccm (28.74 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression10.7:1
Bore/Stroke67.0 x 66.8 mm (2.6 x 2.6 inches)
Valves/Cylinder4
FuelingInjection. PGM-FI with 34mm throttle bodies
IgnitionFull transistorized
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet multiplate, assisted slipper clutch
DrivelineO-ring-sealed chain

Performance

Horespower46.9 HP (34.3 kW) @ 8600 RPM
Torque43.0 Nm (4.4 kgf-m or 31.7 ft.lbs) @ 6500 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption3.50 litres/100 km (28.6 km/l or 67.21 mpg)
Fuel Capacity17.10 litres (4.52 US gallons)
Emissions81.2 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeSteel diamond-tube
Rake25.5 deg
Trail102 mm (4.0 inches)
Front SuspensionShowa 41mm SFF-BP USD forks, pre-load adjustable
Front Travel120 mm (4.7 inches)
Rear SuspensionProlink mono with 5 stage pre-load adjuster. Steel hollow cross swingarm.
Rear Travel119 mm (4.7 inches)
Seat
Seat Height785 mm (30.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1145 mm (45.1 inches)
Total Length2080 mm (81.9 inches)
Total Width755 mm (29.7 inches)
Ground Clearance
Wheelbase1410 mm (55.5 inches)
Dry Weight
Wet Weight190.1 kg (419.0 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre160/60-ZR17
Front BrakesDouble disc. Wave disc. Two-piston calipers. ABS.
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesSingle disc. Wave disc. Single-piston caliper. ABS.
Rear Brake Diameter240 mm (9.4 inches)
WheelsCast aluminium, 5 Y-shaped spokes

Comments

It appears you're interested in specifications for the Honda CBR500R. This Sport model is powered by a Twin, four-stroke engine with 471.0 ccm (28.74 cubic inches) of actual displacement before 10.7:1 compression. Fueling is metered via Injection. PGM-FI with 34mm throttle bodies allowing this machine to produce its 46.9 HP (34.3 kW) @ 8600 RPM horsepower and 43.0 Nm (4.4 kgf-m or 31.7 ft.lbs) @ 6500 RPM torque. According to our records engine heat of the Honda CBR500R is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 160/60-ZR17 . The entire package is supported by the frame, Steel diamond-tube. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Wave disc. Two-piston calipers. ABS. front brakes and Single disc. Wave disc. Single-piston caliper. ABS. rear brakes. The Honda CBR500R was launched in 2022, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: CBR500R. Honda Intelligent Security System.
