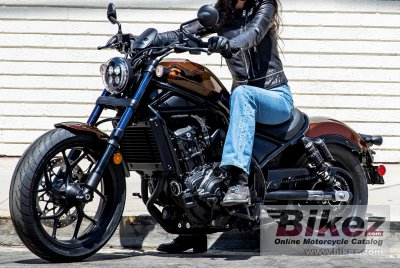

2022 Honda CMX1100 Rebel Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2022 Honda CMX1100 Rebel.

Basic Specs

Honda CMX1100 Rebel
Year2022
MakeHonda
ModelHonda CMX1100 Rebel
Cost

Engine

Displacement1084.0 ccm (66.15 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression10.1:1
Bore/Stroke91.0 x 81.5 mm (3.6 x 3.2 inches)
Valves/Cylinder4
FuelingInjection. PGM-FI with 34mm throttle bodies
IgnitionComputer-controlled digital transistorized with electronic advance
Exhaust2-1 exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet multiplate Hydraulic. Optional DCT.
DrivelineO-ring-sealed chain

Performance

Horespower85.8 HP (62.6 kW) @ 7000 RPM
Torque98.0 Nm (10.0 kgf-m or 72.3 ft.lbs) @ 4750 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption20.41 litres/100 km (4.9 km/l or 11.52 mpg)
Fuel Capacity13.60 litres (3.59 US gallons)
Emissions473.5 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake28.0 deg
Trail110 mm (4.3 inches)
Front SuspensionPreload adjustable 43mm cartridge style
Front Travel
Rear SuspensionWet multiplate hydraulic 2-clutch
Rear Travel
Seat
Seat Height700 mm (27.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1115 mm (43.9 inches)
Total Length2240 mm (88.2 inches)
Total Width853 mm (33.6 inches)
Ground Clearance120 mm (4.7 inches)
Wheelbase1520 mm (59.8 inches)
Dry Weight
Wet Weight223.0 kg (491.6 pounds)

Wheels & Brakes

Front Tire/Tyre130/70-18
Rear Tire/Tyre180/65-B16
Front BrakesDouble disc. ABS. Radial mounted monoblock four-piston brake caliper.
Front Brake Diameter330 mm (13.0 inches)
Rear BrakesSingle disc. ABS. Single piston caliper.
Rear Brake Diameter256 mm (10.1 inches)
WheelsMulti-spoke cast aluminium

Comments

It appears you're interested in specifications for the Honda CMX1100 Rebel. This Custom / cruiser model is powered by a Twin, four-stroke engine with 1084.0 ccm (66.15 cubic inches) of actual displacement before 10.1:1 compression. Fueling is metered via Injection. PGM-FI with 34mm throttle bodies allowing this machine to produce its 85.8 HP (62.6 kW) @ 7000 RPM horsepower and 98.0 Nm (10.0 kgf-m or 72.3 ft.lbs) @ 4750 RPM torque. According to our records engine heat of the Honda CMX1100 Rebel is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 130/70-18 and the rear is 180/65-B16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Radial mounted monoblock four-piston brake caliper. front brakes and Single disc. ABS. Single piston caliper. rear brakes. The Honda CMX1100 Rebel was launched in 2022, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
