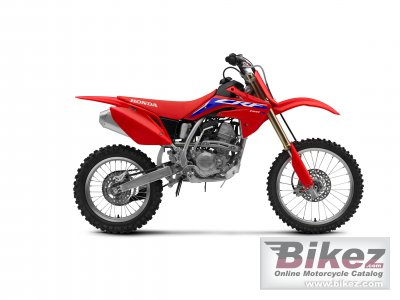

2022 Honda CRF150RB Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2022 Honda CRF150RB.

Basic Specs

Honda CRF150RB
Year2022
MakeHonda
ModelHonda CRF150RB
Cost

Engine

Displacement149.0 ccm (9.09 cubic inches)
Type26mm intake valve, steel; 22.5mm exhaust valve, steel
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.7:1
Bore/Stroke66.0 x 43.7 mm (2.6 x 1.7 inches)
Valves/Cylinder4
FuelingCarburettor. Keihin® 32mm flat slide with Throttle Position Sensor (TPS)
IgnitionSolid-state CD with electronic advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final Drive
ClutchMulti plate wet
Driveline#420 chain; 15T/50T

Performance

Horespower23.5 HP (17.1 kW) @ 12500 RPM
Torque14.1 Nm (1.4 kgf-m or 10.4 ft.lbs) @ 11000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity4.20 litres (1.11 US gallons)
Emissions

Chassis

Frame TypeSemi-double, steel tube
Rake27.5 deg
Trail96 mm (3.8 inches)
Front Suspension37mm fully adjustable leading-axle inverted Showa® cartridge fork
Front Travel274 mm (10.8 inches)
Rear SuspensionPro-Link® fully adjustable Showa single shock
Rear Travel272 mm (10.7 inches)
Seat
Seat Height866 mm (34.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1170 mm (46.1 inches)
Total Length1899 mm (74.8 inches)
Total Width769 mm (30.3 inches)
Ground Clearance335 mm (13.2 inches)
Wheelbase1260 mm (49.6 inches)
Dry Weight
Wet Weight83.9 kg (185.0 pounds)

Wheels & Brakes

Front Tire/Tyre70/100-19
Rear Tire/Tyre90/100-16
Front BrakesSingle disc
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter190 mm (7.5 inches)
WheelsAluminium spoke. Dunlop MX51 tyres.

Comments

It appears you're interested in specifications for the Honda CRF150RB. This Cross / motocross model is powered by a 26mm intake valve, steel; 22.5mm exhaust valve, steel Single cylinder, four-stroke engine with 149.0 ccm (9.09 cubic inches) of actual displacement before 11.7:1 compression. Fueling is metered via Carburettor. Keihin® 32mm flat slide with Throttle Position Sensor (TPS) allowing this machine to produce its 23.5 HP (17.1 kW) @ 12500 RPM horsepower and 14.1 Nm (1.4 kgf-m or 10.4 ft.lbs) @ 11000 RPM torque. According to our records engine heat of the Honda CRF150RB is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 70/100-19 and the rear is 90/100-16 . The entire package is supported by the frame, Semi-double, steel tube. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Honda CRF150RB was launched in 2022, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: CRF150RB.
