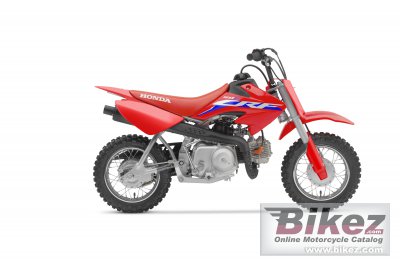

2022 Honda CRF50F Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2022 Honda CRF50F.

Basic Specs

Honda CRF50F
Year2022
MakeHonda
ModelHonda CRF50F
Cost

Engine

Displacement49.0 ccm (2.99 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke39.0 x 41.4 mm (1.5 x 1.6 inches)
Valves/Cylinder2
FuelingCarburettor. 11 piston valve
IgnitionCD
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox3-speed
Final Drive
ClutchAutomatic
Driveline#420 chain; 14T/37T

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity4.10 litres (1.08 US gallons)
Emissions

Chassis

Frame TypeSteel
Rake25.0 deg
Trail32 mm (1.3 inches)
Front SuspensionInverted telescopic fork
Front Travel94 mm (3.7 inches)
Rear SuspensionMonoshock
Rear Travel69 mm (2.7 inches)
Seat
Seat Height548 mm (21.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height775 mm (30.5 inches)
Total Length1298 mm (51.1 inches)
Total Width571 mm (22.5 inches)
Ground Clearance152 mm (6.0 inches)
Wheelbase914 mm (36.0 inches)
Dry Weight
Wet Weight50.3 kg (110.9 pounds)

Wheels & Brakes

Front Tire/Tyre2.50-10
Rear Tire/Tyre2.50-10
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
WheelsAluminium spoke

Comments

It appears you're interested in specifications for the Honda CRF50F. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 49.0 ccm (2.99 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Carburettor. 11 piston valve allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda CRF50F is moderated by Air. You'll need to get familiar with the 3-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 2.50-10 and the rear is 2.50-10 . The entire package is supported by the frame, Steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake) front brakes and Expanding brake (drum brake) rear brakes. The Honda CRF50F was launched in 2022, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model id: CRF50F. Adjustable throttle limiter.
