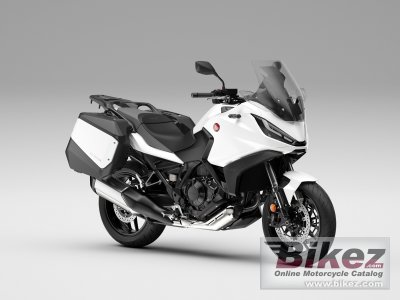

2022 Honda NT1100 DCT Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2022 Honda NT1100 DCT.

Basic Specs

Honda NT1100 DCT
Year2022
MakeHonda
ModelHonda NT1100 DCT
Cost

Engine

Displacement1084.0 ccm (66.15 cubic inches)
Type270° crank
DetailsTwin, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke92.0 x 81.5 mm (3.6 x 3.2 inches)
Valves/Cylinder4
FuelingInjection. PGM-FI electronic fuel injection
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet, multiplate.
DrivelineDual Clutch Transmission.

Performance

Horespower100.6 HP (73.4 kW) @ 7500 RPM
Torque104.0 Nm (10.6 kgf-m or 76.7 ft.lbs) @ 6250 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption5.00 litres/100 km (20.0 km/l or 47.04 mpg)
Fuel Capacity20.40 litres (5.39 US gallons)
Emissions116.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeSemi-Double Cradle (Steel) and bolt-on aluminium subframe
Rake26.5 deg
Trail108 mm (4.3 inches)
Front SuspensionShowa 43mm SFF-BP type inverted telescopic fork with dial-style preload adjust
Front Travel150 mm (5.9 inches)
Rear SuspensionMonoblock aluminium swing arm with Pro-Link with SHOWA gas-charged damper, hydraulic dial-style preload adjuster
Rear Travel150 mm (5.9 inches)
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1360 mm (53.5 inches)
Total Length2240 mm (88.2 inches)
Total Width865 mm (34.1 inches)
Ground Clearance175 mm (6.9 inches)
Wheelbase1535 mm (60.4 inches)
Dry Weight
Wet Weight238.1 kg (524.9 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-R17
Rear Tire/Tyre180/55-R17
Front BrakesDouble disc. ABS. 4-piston calipers.
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. ABS. Single piston.
Rear Brake Diameter256 mm (10.1 inches)
WheelsMulti-spoke cast aluminium

Comments

It appears you're interested in specifications for the Honda NT1100 DCT. This Sport touring model is powered by a 270° crank Twin, four-stroke engine with 1084.0 ccm (66.15 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Injection. PGM-FI electronic fuel injection allowing this machine to produce its 100.6 HP (73.4 kW) @ 7500 RPM horsepower and 104.0 Nm (10.6 kgf-m or 76.7 ft.lbs) @ 6250 RPM torque. According to our records engine heat of the Honda NT1100 DCT is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-R17 and the rear is 180/55-R17 . The entire package is supported by the frame, Semi-Double Cradle (Steel) and bolt-on aluminium subframe. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. 4-piston calipers. front brakes and Single disc. ABS. Single piston. rear brakes. The Honda NT1100 DCT was launched in 2022, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Windscreen. Cruise control.
