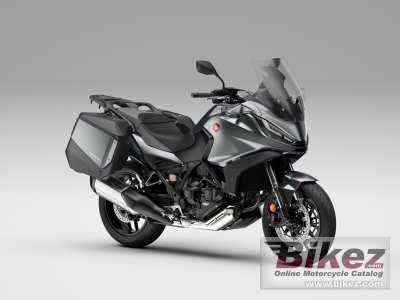

These are the known mechanical and performance specifications for your 2022 Honda NT1100.
Basic Specs
Engine
Displacement1084.0 ccm (66.15 cubic inches)
Type270° crank
DetailsTwin, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke92.0 x 81.5 mm (3.6 x 3.2 inches)
Valves/Cylinder4
FuelingInjection. PGM-FI electronic fuel injection
Ignition
Exhaust
Lubrication
CoolingLiquid
Performance
Horespower100.6 HP (73.4 kW) @ 7500 RPM
Torque104.0 Nm (10.6 kgf-m or 76.7 ft.lbs) @ 6250 RPM
Top Speed
Fuel Economy & Polution
Fuel Consumption5.00 litres/100 km (20.0 km/l or 47.04 mpg)
Fuel Capacity20.40 litres (5.39 US gallons)
Emissions116.0 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeSemi-Double Cradle (Steel) and bolt-on aluminium subframe
Rake26.5 deg
Trail108 mm (4.3 inches)
Front SuspensionShowa 43mm SFF-BP type inverted telescopic fork with dial-style preload adjust
Front Travel150 mm (5.9 inches)
Rear SuspensionMonoblock aluminium swing arm with Pro-Link with SHOWA gas-charged damper, hydraulic dial-style preload adjuster
Rear Travel150 mm (5.9 inches)
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1360 mm (53.5 inches)
Total Length2240 mm (88.2 inches)
Total Width865 mm (34.1 inches)
Ground Clearance175 mm (6.9 inches)
Wheelbase1535 mm (60.4 inches)
Dry Weight
Wet Weight238.1 kg (524.9 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-R17
Rear Tire/Tyre180/55-R17
Front BrakesDouble disc. ABS. 4-piston calipers.
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. ABS. Single piston.
Rear Brake Diameter256 mm (10.1 inches)
WheelsMulti-spoke cast aluminium
