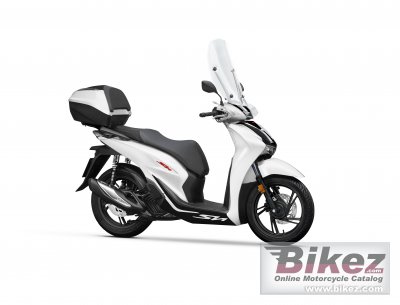

2022 Honda SH125i Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2022 Honda SH125i.

Basic Specs

Honda SH125i
Year2022
MakeHonda
ModelHonda SH125i
Cost

Engine

Displacement124.9 ccm (7.62 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke53.5 x 55.5 mm (2.1 x 2.2 inches)
Valves/Cylinder
FuelingInjection. PGM-FI
IgnitionDigital transistorised with electronic advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

GearboxAutomatic
Final Drive
ClutchAutomatic, centrifugal
DrivelineV-Belt

Performance

Horespower12.9 HP (9.4 kW) @ 8250 RPM
Torque12.0 Nm (1.2 kgf-m or 8.9 ft.lbs) @ 6500 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption2.19 litres/100 km (45.7 km/l or 107.41 mpg)
Fuel Capacity7.00 litres (1.85 US gallons)
Emissions50.8 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeTubular steel underbone
Rake26.0 deg
Trail85 mm (3.4 inches)
Front Suspension33mm telescopic fork
Front Travel89 mm (3.5 inches)
Rear SuspensionDual-damper unit swingarm
Rear Travel83 mm (3.3 inches)
Seat
Seat Height799 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1130 mm (44.5 inches)
Total Length2090 mm (82.3 inches)
Total Width730 mm (28.7 inches)
Ground Clearance145 mm (5.7 inches)
Wheelbase1350 mm (53.1 inches)
Dry Weight123.0 kg (271.2 pounds)
Wet Weight133.9 kg (295.2 pounds)

Wheels & Brakes

Front Tire/Tyre100/80-16
Rear Tire/Tyre120/80-16
Front BrakesSingle disc. ABS. Two-piston calipers.
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesSingle disc. ABS. Single-piston caliper.
Rear Brake Diameter240 mm (9.4 inches)
WheelsAluminium die-cast wheels

Comments

It appears you're interested in specifications for the Honda SH125i. This Scooter model is powered by a Single cylinder, four-stroke engine with 124.9 ccm (7.62 cubic inches) of actual displacement before 11.5:1 compression. Fueling is metered via Injection. PGM-FI allowing this machine to produce its 12.9 HP (9.4 kW) @ 8250 RPM horsepower and 12.0 Nm (1.2 kgf-m or 8.9 ft.lbs) @ 6500 RPM torque. According to our records engine heat of the Honda SH125i is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 100/80-16 and the rear is 120/80-16 . The entire package is supported by the frame, Tubular steel underbone. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. ABS. Two-piston calipers. front brakes and Single disc. ABS. Single-piston caliper. rear brakes. The Honda SH125i was launched in 2022, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Honda Smart Key, USB charger.
