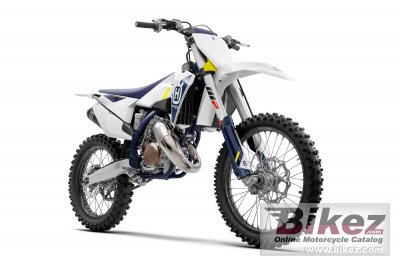

These are the known mechanical and performance specifications for your 2022 Husqvarna TC 125.
Basic Specs
Engine
Displacement124.8 ccm (7.62 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke54.0 x 54.5 mm (2.1 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor. 38 mm flat slide MIKUNI TMX
IgnitionKokusan EMS
Exhaust
LubricationMixture oil lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final Drive
ClutchWet, multi-disc clutch, Magura hydraulics
Driveline5/8 x 1/4´ chain
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity8.00 litres (2.11 US gallons)
Emissions
Chassis
Frame TypeCentral double-cradle-type 25CrMo4 steel
Rake26.1 deg
Trail
Front SuspensionWP XACT-USD, Ø 48 mm
Front Travel300 mm (11.8 inches)
Rear SuspensionWP XACT Monoshock with linkage
Rear Travel300 mm (11.8 inches)
Seat
Seat Height940 mm (37.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance375 mm (14.8 inches)
Wheelbase1485 mm (58.5 inches)
Dry Weight87.5 kg (192.9 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre80/100-21
Rear Tire/Tyre120/90-18
Front BrakesSingle disc. Brembo twin-piston floating calliper
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Brembo single-piston floating calliper
Rear Brake Diameter220 mm (8.7 inches)
Wheels
