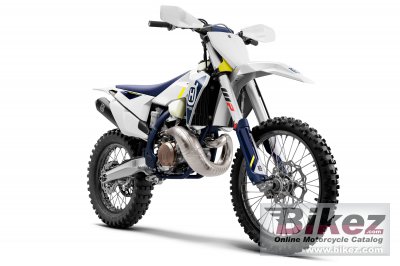

2022 Husqvarna TX 300i Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2022 Husqvarna TX 300i.

Basic Specs

Husqvarna TX 300i
Year2022
MakeHusqvarna
ModelHusqvarna TX 300i
CostUS$ 10599. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement293.2 ccm (17.89 cubic inches)
TypeCounter balancer shaft
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke72.0 x 72.0 mm (2.8 x 2.8 inches)
Valves/Cylinder
FuelingInjection
IgnitionContinental EMS
Exhaust
LubricationMixture oil lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet, DDS multi-disc clutch, Brembo hydraulics
Driveline5/8 x 1/4´ chain

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity8.50 litres (2.25 US gallons)
Emissions

Chassis

Frame TypeCentral double-cradle-type 25CrMo4 steel
Rake26.1 deg
Trail106 mm (4.2 inches)
Front SuspensionWP XACT-USD, Ø 48 mm
Front Travel310 mm (12.2 inches)
Rear SuspensionWP XACT Monoshock with linkage
Rear Travel300 mm (11.8 inches)
Seat
Seat Height950 mm (37.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance375 mm (14.8 inches)
Wheelbase1485 mm (58.5 inches)
Dry Weight101.5 kg (223.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre140/90-18
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Husqvarna TX 300i. This Enduro / offroad model is powered by a Counter balancer shaft Single cylinder, two-stroke engine with 293.2 ccm (17.89 cubic inches) of actual displacement before compression. Fueling is metered via Injection allowing this machine to produce its horsepower and torque. According to our records engine heat of the Husqvarna TX 300i is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 140/90-18 . The entire package is supported by the frame, Central double-cradle-type 25CrMo4 steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Husqvarna TX 300i was launched in 2022, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
