2022 Kawasaki KLX 230 SE Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2022 Kawasaki KLX 230 SE.

Basic Specs

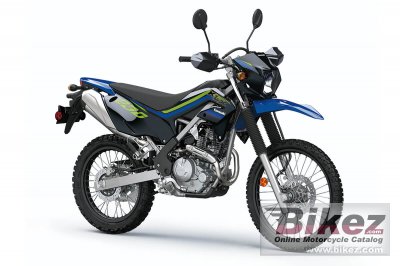

Kawasaki KLX 230 SE
Year2022
MakeKawasaki
ModelKawasaki KLX 230 SE
CostUS$ 4999. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement233.0 ccm (14.22 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.4:1
Bore/Stroke67.0 x 66.0 mm (2.6 x 2.6 inches)
Valves/Cylinder4
FuelingInjection. DFI® with 32mm Keihin throttle body
IgnitionTCBI Electronic Advance
Exhaust
LubricationForced lubrication, wet sump
CoolingAir

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet multi-disc, manual
DrivelineSealed chain

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity7.57 litres (2.00 US gallons)
Emissions

Chassis

Frame TypeHigh-tensile steel, box-section perimeter
Rake27.5 deg
Trail117 mm (4.6 inches)
Front Suspension37mm telescopic fork
Front Travel221 mm (8.7 inches)
Rear SuspensionUni-Trak® linkage system and single shock with adjustable spring preload
Rear Travel224 mm (8.8 inches)
Seat
Seat Height884 mm (34.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1158 mm (45.6 inches)
Total Length2106 mm (82.9 inches)
Total Width836 mm (32.9 inches)
Ground Clearance211 mm (8.3 inches)
Wheelbase1379 mm (54.3 inches)
Dry Weight
Wet Weight132.0 kg (291.1 pounds)

Wheels & Brakes

Front Tire/Tyre80/100-21
Rear Tire/Tyre100/100-18
Front BrakesSingle disc. Dual-piston. Petal disc. Optional ABS.
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesSingle disc. Single-piston. Petal disc. Optional ABS.
Rear Brake Diameter220 mm (8.7 inches)
WheelsWire spoked. Black anodized rims.

Comments

It appears you're interested in specifications for the Kawasaki KLX 230 SE. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 233.0 ccm (14.22 cubic inches) of actual displacement before 9.4:1 compression. Fueling is metered via Injection. DFI® with 32mm Keihin throttle body allowing this machine to produce its horsepower and torque. According to our records engine heat of the Kawasaki KLX 230 SE is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 80/100-21 and the rear is 100/100-18 . The entire package is supported by the frame, High-tensile steel, box-section perimeter. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Dual-piston. Petal disc. Optional ABS. front brakes and Single disc. Single-piston. Petal disc. Optional ABS. rear brakes. The Kawasaki KLX 230 SE was launched in 2022, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Special edition. Hand guards. Tapered handlebar. Skid plate. Frame covers.
