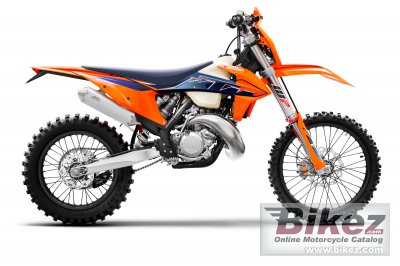

These are the known mechanical and performance specifications for your 2022 KTM 150 XC-W TPI.
Basic Specs
Year2022
MakeKTM
ModelKTM 150 XC-W TPI
TypeEnduro / offroad
CostUS$ 9199. MSRP depends on country, taxes, accessories, etc.
Engine
Displacement144.0 ccm (8.79 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke58.0 x 54.5 mm (2.3 x 2.1 inches)
Valves/Cylinder
FuelingInjection
IgnitionContinental EMS
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final Drive
ClutchWet multi-plate clutch, Brembo hydraulics
DrivelineX-Ring 5/8 x 1/4´ chain
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity9.00 litres (2.38 US gallons)
Emissions
Chassis
Frame TypeCentral double-cradle-type 25CrMo4 steel
Rake26.5 deg
Trail
Front SuspensionWP XPlor 48 upside-down fork
Front Travel300 mm (11.8 inches)
Rear SuspensionWP Xplor PDS shock absorber
Rear Travel310 mm (12.2 inches)
Seat
Seat Height950 mm (37.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance370 mm (14.6 inches)
Wheelbase1471 mm (57.9 inches)
Dry Weight96.8 kg (213.4 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc. Brembo twin-piston floating calliper
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Brembo single-piston floating calliper
Rear Brake Diameter220 mm (8.7 inches)
Wheels
Comments
