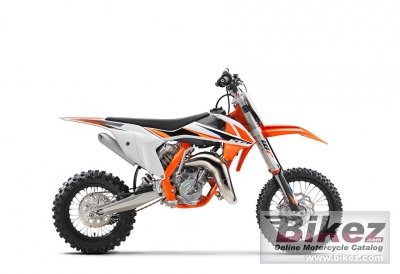

2022 KTM 65 SX Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2022 KTM 65 SX .

Basic Specs

KTM 65 SX
Year2022
MakeKTM
ModelKTM 65 SX
CostUS$ 5199. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement64.9 ccm (3.96 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke45.0 x 40.8 mm (1.8 x 1.6 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionAET digital
Exhaust
LubricationMixture oil lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet, multi-disc clutch, Formula hydraulics
Driveline1/2 x 1/4´ chain

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity3.50 litres (0.92 US gallons)
Emissions

Chassis

Frame TypeCentral-tube frame with double-cradle
Rake25.5 deg
Trail
Front SuspensionXACT 35 WP Upside-Down fork, Ø 35 mm
Front Travel215 mm (8.5 inches)
Rear SuspensionXACT WP mono shock
Rear Travel270 mm (10.6 inches)
Seat
Seat Height750 mm (29.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance280 mm (11.0 inches)
Wheelbase1270 mm (50.0 inches)
Dry Weight53.0 kg (116.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter198 mm (7.8 inches)
Rear BrakesSingle disc
Rear Brake Diameter160 mm (6.3 inches)
Wheels

Comments

It appears you're interested in specifications for the KTM 65 SX . This Minibike, cross model is powered by a Single cylinder, two-stroke engine with 64.9 ccm (3.96 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor allowing this machine to produce its horsepower and torque. According to our records engine heat of the KTM 65 SX is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, Central-tube frame with double-cradle. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The KTM 65 SX was launched in 2022, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
