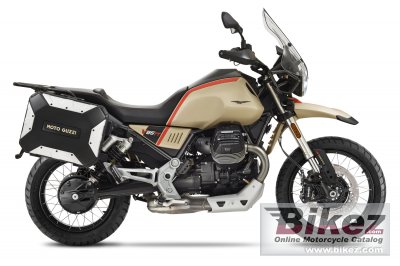

These are the known mechanical and performance specifications for your 2022 Moto Guzzi V85 TT Travel.
Basic Specs
Engine
Displacement853.0 ccm (52.05 cubic inches)
TypeTransversal 90° V-twin. Titanium intake.
DetailsV2, four-stroke
Max RPM
Compression
Bore/Stroke84.0 x 77.0 mm (3.3 x 3.0 inches)
Valves/Cylinder2
FuelingInjection
IgnitionElectronic
Exhaust
Lubrication
CoolingAir
Performance
Horespower76.0 HP (55.5 kW) @ 7500 RPM
Torque82.0 Nm (8.4 kgf-m or 60.5 ft.lbs) @ 5000 RPM
Top Speed
Fuel Economy & Polution
Fuel Consumption4.90 litres/100 km (20.4 km/l or 48.00 mpg)
Fuel Capacity23.00 litres (6.08 US gallons)
Emissions113.7 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeTubular steel
Rake28.0 deg
Trail104 mm (4.1 inches)
Front SuspensionUpside down hydraulic telescopic fork Ø 41 mm, with adjustable extension and spring preload.
Front Travel
Rear SuspensionSwingarm Twin-sided with lateral mono shock absorber, adjustable extension and spring preload.
Rear Travel
Seat
Seat Height803 mm (31.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance150 mm (5.9 inches)
Wheelbase1450 mm (57.1 inches)
Dry Weight211.0 kg (465.2 pounds)
Wet Weight243.0 kg (535.7 pounds)
Wheels & Brakes
Front Tire/Tyre110/80-19
Rear Tire/Tyre150/70-17
Front BrakesDouble disc. Radial Brembo calipers with 4 opposed pistons. ABS.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Floating 2 pistons caliper. ABS.
Rear Brake Diameter260 mm (10.2 inches)
WheelsCross spoked tubeless wheel.
Comments
Ride by Wire, 5 Riding Mode (Street, Rain, Offroad, Sport, Custom), Cruise Control, Handguard, Aluminium sump guard, MGCTMoto Guzzi Controllo di Trazione, Standard double channel ABS, Dedicated Side panniers, Heated grips, Touring windshield, Moto Guzzi MIA, LED fog lamps
