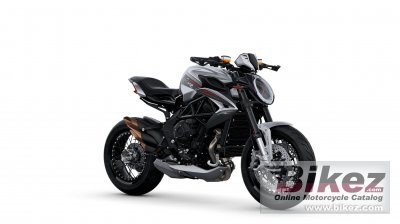

2022 MV Agusta Dragster RR Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2022 MV Agusta Dragster RR.

Basic Specs

MV Agusta Dragster RR
Year2022
MakeMV Agusta
ModelMV Agusta Dragster RR
Cost

Engine

Displacement798.0 ccm (48.69 cubic inches)
TypeMechanical chain tensioner and DLC tappet
DetailsIn-line three, four-stroke
Max RPM13200
Compression13.3:1
Bore/Stroke79.0 x 54.3 mm (3.1 x 2.1 inches)
Valves/Cylinder4
FuelingInjection. Integrated ignition - injection system MVICS 2.1 (Motor and Vehicle Integrated Control System) with six injectors.
IgnitionEngine control unit Eldor Nemo 2.1, throttle body full ride by wire Mikuni, pencil-coil with ion-sensing technology,
Exhaust
Lubrication
CoolingOil & air

Drivetrain

Gearbox6-speed
Final Drive
ClutchMulti-disc wet clutch with hydraulic actuation and back torque limiting device.
DrivelineCassette style, constant mesh

Performance

Horespower140.0 HP (102.2 kW) @ 12300 RPM
Torque87.0 Nm (8.9 kgf-m or 64.2 ft.lbs) @ 10250 RPM
Top Speed244.0 km/h (151.6 mph)

Fuel Economy & Polution

Fuel Consumption5.90 litres/100 km (16.9 km/l or 39.87 mpg)
Fuel Capacity16.50 litres (4.36 US gallons)
Emissions136.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeALS Steel tubular trellis
Rake
Trail104 mm (4.1 inches)
Front SuspensionMarzocchi ”œUPSIDE DOWN” telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment
Front Travel125 mm (4.9 inches)
Rear SuspensionProgressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment
Rear Travel130 mm (5.1 inches)
Seat
Seat Height845 mm (33.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2035 mm (80.1 inches)
Total Width935 mm (36.8 inches)
Ground Clearance135 mm (5.3 inches)
Wheelbase1400 mm (55.1 inches)
Dry Weight175.0 kg (385.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre200/55-ZR17
Front BrakesDouble disc. ABS. Brembo. Floating disc, 4-piston
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. Brembo. 2-piston
Rear Brake Diameter220 mm (8.7 inches)
WheelsAluminium alloy spokes

Comments

It appears you're interested in specifications for the MV Agusta Dragster RR. This Naked bike model is powered by a Mechanical chain tensioner and DLC tappet In-line three, four-stroke engine with 798.0 ccm (48.69 cubic inches) of actual displacement before 13.3:1 compression. Fueling is metered via Injection. Integrated ignition - injection system MVICS 2.1 (Motor and Vehicle Integrated Control System) with six injectors. allowing this machine to produce its 140.0 HP (102.2 kW) @ 12300 RPM horsepower and 87.0 Nm (8.9 kgf-m or 64.2 ft.lbs) @ 10250 RPM torque. According to our records engine heat of the MV Agusta Dragster RR is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 200/55-ZR17 . The entire package is supported by the frame, ALS Steel tubular trellis. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Brembo. Floating disc, 4-piston front brakes and Single disc. ABS. Brembo. 2-piston rear brakes. The MV Agusta Dragster RR was launched in 2022, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

MV Ride App. GPS sensor. Bluetooth Mobisat tracker. Cruise control. Launch control.
