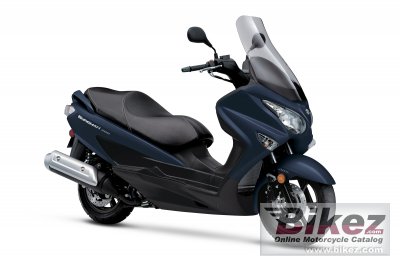

2022 Suzuki Burgman 200 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2022 Suzuki Burgman 200.

Basic Specs

Suzuki Burgman 200
Year2022
MakeSuzuki
ModelSuzuki Burgman 200
TypeScooter
CostUS$ 4999. MSRP depends on country, taxes, accessories, etc.
Service Manual
Classic Service Manual
Electric Service Manual

Engine

Displacement200.0 ccm (12.20 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke69.0 x 53.4 mm (2.7 x 2.1 inches)
Valves/Cylinder4
FuelingInjection
IgnitionCDI
Exhaust
LubricationWet Sump
CoolingLiquid
Spark Plugs

Drivetrain

GearboxAutomatic
Final Drive
ClutchDry shoe, automatic, centrifugal type
DrivelineAutomatic continuous variable transmission (CVT)
Clutch Plates

Performance

Horespower
Torque
Top Speed
K&N Air Filter Slip-on Exhaust

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity10.50 litres (2.77 US gallons)
Emissions
Fuel Bottles & Cans

Chassis

Frame TypeUnderbone
Rake
Trail
Front SuspensionTelescopic oil-damped forks
Front Travel
Rear SuspensionSwingarm type, single shock, coil spring, oil damped
Rear Travel
SeatTwo-person seat with integral rider”™s backrest
Seat Height735 mm (28.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1240 mm (48.8 inches)
Total Length2055 mm (80.9 inches)
Total Width740 mm (29.1 inches)
Ground Clearance130 mm (5.1 inches)
Wheelbase1465 mm (57.7 inches)
Dry Weight150.0 kg (330.7 pounds)
Wet Weight163.0 kg (359.4 pounds)
Seats & Covers Lowering Kits Titanium

Wheels & Brakes

Front Tire/Tyre110/90-13
Rear Tire/Tyre130/70-12
Front BrakesSingle disc. ABS. Two-piston caliper.
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesSingle disc. ABS
Rear Brake Diameter240 mm (9.4 inches)
Wheels
Front Brakes Pads Rear Brake Pads Front Tire Rear Tire

Comments

It appears you're interested in specifications for the Suzuki Burgman 200. This Scooter model is powered by a Single cylinder, four-stroke engine with 200.0 ccm (12.20 cubic inches) of actual displacement before 11.0:1 compression. Fueling is metered via Injection allowing this machine to produce its horsepower and torque. According to our records engine heat of the Suzuki Burgman 200 is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 110/90-13 and the rear is 130/70-12 . The entire package is supported by the frame, Underbone. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. ABS. Two-piston caliper. front brakes and Single disc. ABS rear brakes. The Suzuki Burgman 200 was launched in 2022, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Wind-tunnel tested windscreen. Eco Drive Indicator.
