2022 Suzuki DR-Z50 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2022 Suzuki DR-Z50.

Basic Specs

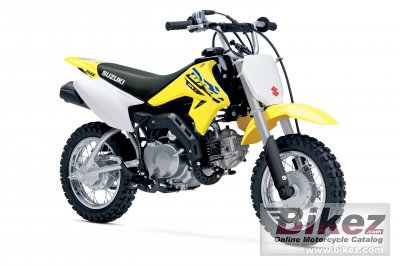

Suzuki DR-Z50
Year2022
MakeSuzuki
ModelSuzuki DR-Z50
CostUS$ 2209. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement49.0 ccm (2.99 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.7:1
Bore/Stroke39.0 x 41.8 mm (1.5 x 1.6 inches)
Valves/Cylinder
FuelingCarburettor. Mikuni VM13
IgnitionCDI
ExhaustSpark-arrestor equipped muffler
LubricationWet sump
CoolingAir

Drivetrain

Gearbox3-speed
Final Drive
ClutchAutomatic
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity3.00 litres (0.79 US gallons)
Emissions

Chassis

Frame TypeSteel
Rake
Trail
Front SuspensionInverted telescopic, coil spring
Front Travel97 mm (3.8 inches)
Rear SuspensionSwingarm type, coil spring, oil damped
Rear Travel
Seat
Seat Height560 mm (22.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height790 mm (31.1 inches)
Total Length1320 mm (52.0 inches)
Total Width580 mm (22.8 inches)
Ground Clearance135 mm (5.3 inches)
Wheelbase935 mm (36.8 inches)
Dry Weight
Wet Weight54.0 kg (119.0 pounds)

Wheels & Brakes

Front Tire/Tyre2.50-10
Rear Tire/Tyre2.50-10
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Suzuki DR-Z50. This Minibike, cross model is powered by a Single cylinder, four-stroke engine with 49.0 ccm (2.99 cubic inches) of actual displacement before 9.7:1 compression. Fueling is metered via Carburettor. Mikuni VM13 allowing this machine to produce its horsepower and torque. According to our records engine heat of the Suzuki DR-Z50 is moderated by Air. You'll need to get familiar with the 3-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 2.50-10 and the rear is 2.50-10 . The entire package is supported by the frame, Steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake) front brakes and Expanding brake (drum brake) rear brakes. The Suzuki DR-Z50 was launched in 2022, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Single rider only, weight limit 40 kg. Peak power that can be controlled via the adjustable throttle limiter that allows supervising adults to control engine output to suit the rider”™s ability.
