Yamaha

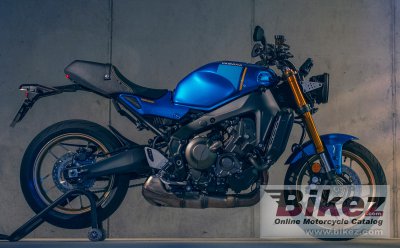

2022 Yamaha XSR900 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2022 Yamaha XSR900.

Basic Specs

Yamaha XSR900
Year2022
MakeYamaha
ModelYamaha XSR900
TypeClassic
Cost
Service Manual
Classic Service Manual
Electric Service Manual

Engine

Displacement847.0 ccm (51.68 cubic inches)
TypeCrossplane crankshaft
DetailsIn-line three, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke78.0 x 59.1 mm (3.1 x 2.3 inches)
Valves/Cylinder4
FuelingInjection
IgnitionTCI
Exhaust
LubricationWet sump
CoolingLiquid
Spark Plugs

Drivetrain

Gearbox6-speed
Final Drive
ClutchMultiplate assist-and-slipper wet clutch
DrivelineConstant mesh
Clutch Plates

Performance

Horespower119.0 HP (86.9 kW) @ 10000 RPM
Torque93.0 Nm (9.5 kgf-m or 68.6 ft.lbs) @ 7000 RPM
Top Speed
K&N Air Filter Slip-on Exhaust

Fuel Economy & Polution

Fuel Consumption5.00 litres/100 km (20.0 km/l or 47.04 mpg)
Fuel Capacity14.00 litres (3.70 US gallons)
Emissions116.0 CO2 g/km. (CO2 - Carbon dioxide emission)
Fuel Bottles & Cans

Chassis

Frame TypeDiamond
Rake25.0 deg
Trail108 mm (4.3 inches)
Front SuspensionTelescopic fork
Front Travel130 mm (5.1 inches)
Rear SuspensionSwingarm
Rear Travel137 mm (5.4 inches)
SeatSingle-piece stepped saddle
Seat Height810 mm (31.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1155 mm (45.5 inches)
Total Length2155 mm (84.8 inches)
Total Width860 mm (33.9 inches)
Ground Clearance140 mm (5.5 inches)
Wheelbase1495 mm (58.9 inches)
Dry Weight
Wet Weight193.0 kg (425.5 pounds)
Seats & Covers Lowering Kits Titanium

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. ABS. Hydraulic.
Front Brake Diameter298 mm (11.7 inches)
Rear BrakesSingle disc. ABS. Hydraulic.
Rear Brake Diameter245 mm (9.6 inches)
Wheels10-spoke cast aluminum
Front Brakes Pads Rear Brake Pads Front Tire Rear Tire

Comments

It appears you're interested in specifications for the Yamaha XSR900. This Classic model is powered by a Crossplane crankshaft In-line three, four-stroke engine with 847.0 ccm (51.68 cubic inches) of actual displacement before 11.5:1 compression. Fueling is metered via Injection allowing this machine to produce its 119.0 HP (86.9 kW) @ 10000 RPM horsepower and 93.0 Nm (9.5 kgf-m or 68.6 ft.lbs) @ 7000 RPM torque. According to our records engine heat of the Yamaha XSR900 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Diamond . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Hydraulic. front brakes and Single disc. ABS. Hydraulic. rear brakes. The Yamaha XSR900 was launched in 2022, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Traction Control.
