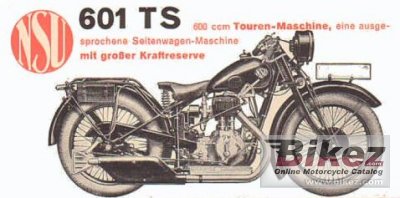

These are the known mechanical and performance specifications for your 1934 NSU 601 TS.
Basic Specs
Engine
Displacement592.00 ccm (36.12 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke87.5 x 99.0 mm (3.4 x 3.9 inches)
Valves/Cylinder
FuelingCarburettor. Amac
IgnitionMagneto Bosch
Exhaust
Lubrication
CoolingAir
Performance
Horespower12.50 HP (9.1 kW)
Torque
Top Speed105.0 km/h (65.2 mph)
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity13.00 litres (3.43 gallons)
Emissions
Chassis
Frame TypeDouble steel
Rake
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height1,040 mm (40.9 inches)
Total Length2,100 mm (82.7 inches)
Total Width830 mm (32.7 inches)
Ground Clearance
Wheelbase1,390 mm (54.7 inches)
Dry Weight165.0 kg (363.8 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre3.50-26
Rear Tire/Tyre27-Apr
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
WheelsSpoked
