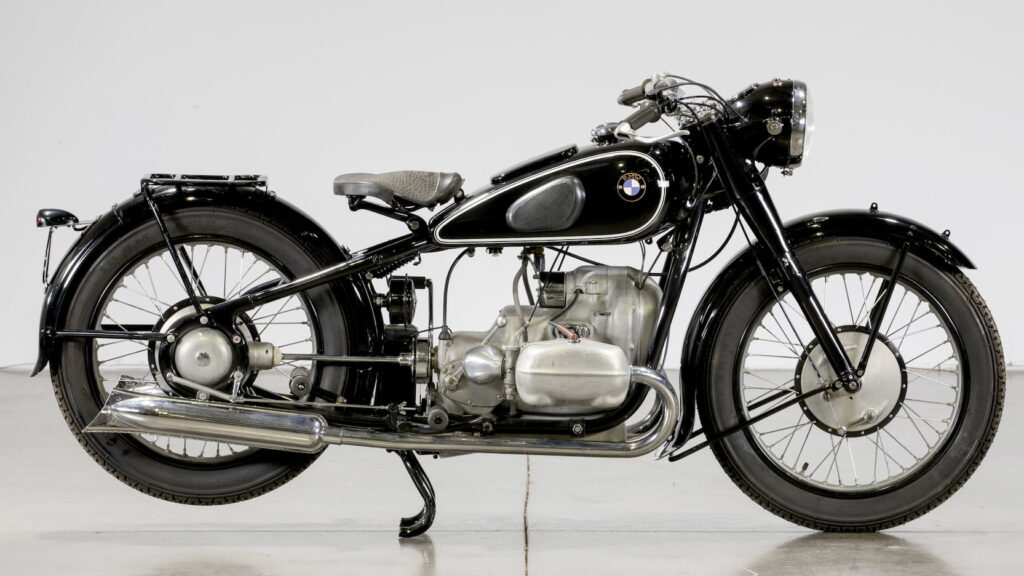

These are the known mechanical and performance specifications for your 1936 BMW R5.
Basic Specs
Engine
Displacement494.00 ccm (30.14 cubic inches)
Type
DetailsTwo cylinder boxer, four-stroke
Max RPM
Compression6.7:1
Bore/Stroke68.0 x 68.0 mm (2.7 x 2.7 inches)
Valves/Cylinder
FuelingCarburettor. Amal
IgnitionBattery
Exhaust
LubricationWet sump
CoolingAir
Drivetrain
Gearbox4-speed
Final DriveShaft drive (cardan)
ClutchDry-single plate
Driveline
Performance
Horespower24.07 HP (17.6 kW)
Torque
Top Speed140.0 km/h (87.0 mph)
Fuel Economy & Polution
Fuel Consumption4.50 litres/100 km (22.2 km/l or 52.27 mpg)
Fuel Capacity15.00 litres (3.96 gallons)
Emissions104.4 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeSteel-double cradlel
Rake
Trail
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionRigid
Rear Travel
SeatSingle seat
Seat Height
Alt. Seat Height
Total Height950 mm (37.4 inches)
Total Length2,130 mm (83.9 inches)
Total Width800 mm (31.5 inches)
Ground Clearance
Wheelbase1,400 mm (55.1 inches)
Dry Weight
Wet Weight165.0 kg (363.8 pounds)
Wheels & Brakes
Front Tire/Tyre3.50-19.00
Rear Tire/Tyre3.50-19.00
Front BrakesExpanding brake (drum brake). Single
Front Brake Diameter200 mm (7.9 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter200 mm (7.9 inches)
Wheels
Comments
