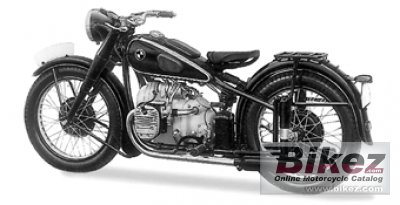

1939 BMW R61 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1939 BMW R61.

Basic Specs

Year1939
MakeBMW
ModelBMW R61
Cost

Engine

Displacement600.00 ccm (36.61 cubic inches)
Type
DetailsTwo cylinder boxer, four-stroke
Max RPM
Compression5.7:1
Bore/Stroke70.0 x 78.0 mm (2.8 x 3.1 inches)
Valves/Cylinder
FuelingCarburettor. Amal
Ignition
Exhaust
LubricationWet sump
CoolingAir

Drivetrain

Gearbox4-speed
Final DriveShaft drive (cardan)
ClutchDry-single plate-cable operated
Driveline

Performance

Horespower17.95 HP (13.1 kW)
Torque
Top Speed115.0 km/h (71.5 mph)

Fuel Economy & Polution

Fuel Consumption3.50 litres/100 km (28.6 km/l or 67.21 mpg)
Fuel Capacity14.00 litres (3.70 gallons)
Emissions81.2 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeSteel-double cradle
Rake
Trail
Front SuspensionLeading link
Front Travel
Rear SuspensionTwin shock-Swingarm
Rear Travel
SeatSolo seat with springs
Seat Height
Alt. Seat Height
Total Height960 mm (37.8 inches)
Total Length2,130 mm (83.9 inches)
Total Width815 mm (32.1 inches)
Ground Clearance
Wheelbase1,400 mm (55.1 inches)
Dry Weight
Wet Weight184.0 kg (405.7 pounds)

Wheels & Brakes

Front Tire/Tyre3.50-19.00
Rear Tire/Tyre3.50-19.00
Front BrakesExpanding brake (drum brake). Single
Front Brake Diameter200 mm (7.9 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter200 mm (7.9 inches)
Wheels

Comments

It appears you're interested in specifications for the BMW R61. This Allround model is powered by a Two cylinder boxer, four-stroke engine with 600.00 ccm (36.61 cubic inches) of actual displacement before 5.7:1 compression. Fueling is metered via Carburettor. Amal allowing this machine to produce its 17.95 HP (13.1 kW) horsepower and torque. According to our records engine heat of the BMW R61 is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 3.50-19.00 and the rear is 3.50-19.00 . The entire package is supported by the frame, Steel-double cradle. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake). Single front brakes and Expanding brake (drum brake) rear brakes. The BMW R61 was launched in 1939, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
