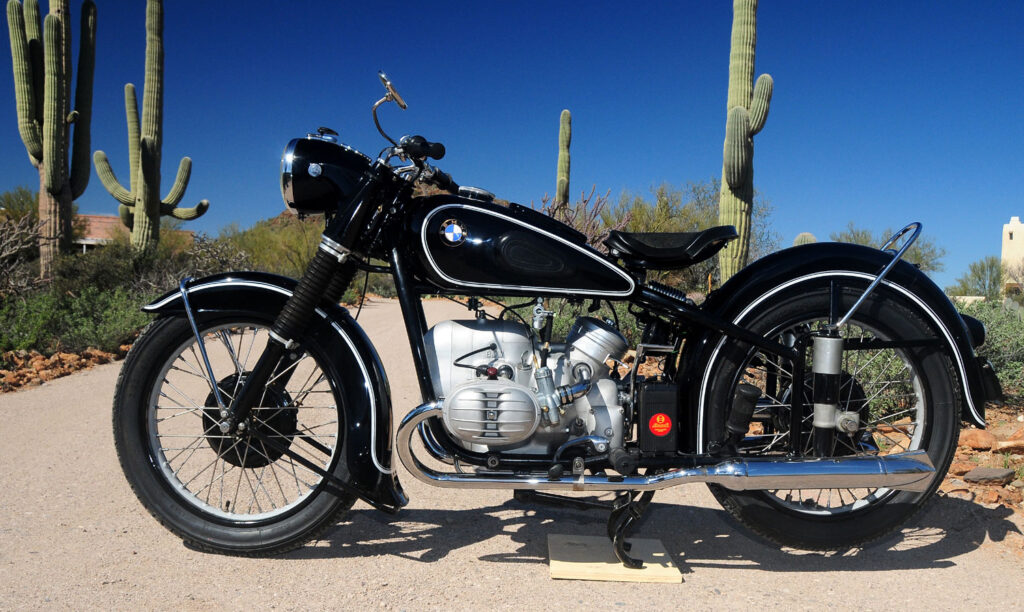

1954 BMW R51 3 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1954 BMW R51 3.

Basic Specs

Year1954
MakeBMW
ModelBMW R51 3
Cost

Engine

Displacement494.00 ccm (30.14 cubic inches)
Type
DetailsTwo cylinder boxer, four-stroke
Max RPM
Compression6.3:1
Bore/Stroke68.0 x 68.0 mm (2.7 x 2.7 inches)
Valves/Cylinder
FuelingCarburettor. 22mm
Ignition
Exhaust
LubricationWet sump
CoolingAir

Drivetrain

Gearbox4-speed
Final DriveShaft drive (cardan)
ClutchDry-single plate-cable operated
Driveline

Performance

Horespower24.07 HP (17.6 kW)
Torque
Top Speed135.0 km/h (83.9 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions

Chassis

Frame TypeSteel single cradle
Rake
Trail
Front SuspensionCartridge
Front Travel
Rear SuspensionTelscopic
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height985 mm (38.8 inches)
Total Length2,130 mm (83.9 inches)
Total Width790 mm (31.1 inches)
Ground Clearance
Wheelbase1,400 mm (55.1 inches)
Dry Weight
Wet Weight190.0 kg (418.9 pounds)

Wheels & Brakes

Front Tire/Tyre3.50-19.00
Rear Tire/Tyre3.50-19.00
Front BrakesExpanding brake (drum brake)
Front Brake Diameter200 mm (7.9 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter200 mm (7.9 inches)
Wheels

Comments

It appears you're interested in specifications for the BMW R51 3. This Allround model is powered by a Two cylinder boxer, four-stroke engine with 494.00 ccm (30.14 cubic inches) of actual displacement before 6.3:1 compression. Fueling is metered via Carburettor. 22mm allowing this machine to produce its 24.07 HP (17.6 kW) horsepower and torque. According to our records engine heat of the BMW R51 3 is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 3.50-19.00 and the rear is 3.50-19.00 . The entire package is supported by the frame, Steel single cradle. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake) front brakes and Expanding brake (drum brake) rear brakes. The BMW R51 3 was launched in 1954, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
