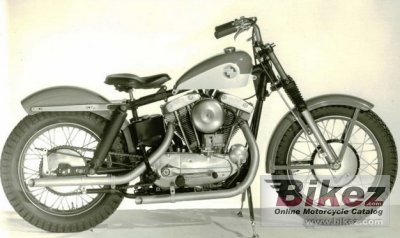

1958 Harley-Davidson Sportster XLCH Ironhead Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1958 Harley-Davidson Sportster XLCH Ironhead.

Basic Specs

Year1958
MakeHarley-Davidson
ModelHarley-Davidson Sportster XLCH Ironhead
TypeSport
CostUS$ 1269. Prices depend on country, taxes, accessories, etc.

Engine

Displacement883.00 ccm (53.88 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke76.2 x 96.8 mm (3.0 x 3.8 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox4-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower55.00 HP (40.1 kW)
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption5.88 litres/100 km (17.0 km/l or 40.00 mpg)
Fuel Capacity17.00 litres (4.49 gallons)
Emissions136.4 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeSteel single downtube
Rake
Trail
Front SuspensionHydraulic telescopic fork
Front Travel
Rear SuspensionSwing-arm, twin hydraulic shocks
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,448 mm (57.0 inches)
Dry Weight222.3 kg (490.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre3.25-19
Rear Tire/Tyre3.25-19
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
WheelsWire spoked

Comments

It appears you're interested in specifications for the Harley-Davidson Sportster XLCH Ironhead. This Sport model is powered by a V2, four-stroke engine with 883.00 ccm (53.88 cubic inches) of actual displacement before 9.0:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 55.00 HP (40.1 kW) horsepower and torque. According to our records engine heat of the Harley-Davidson Sportster XLCH Ironhead is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 3.25-19 and the rear is 3.25-19 . The entire package is supported by the frame, Steel single downtube. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake) front brakes and Expanding brake (drum brake) rear brakes. The Harley-Davidson Sportster XLCH Ironhead was launched in 1958, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
