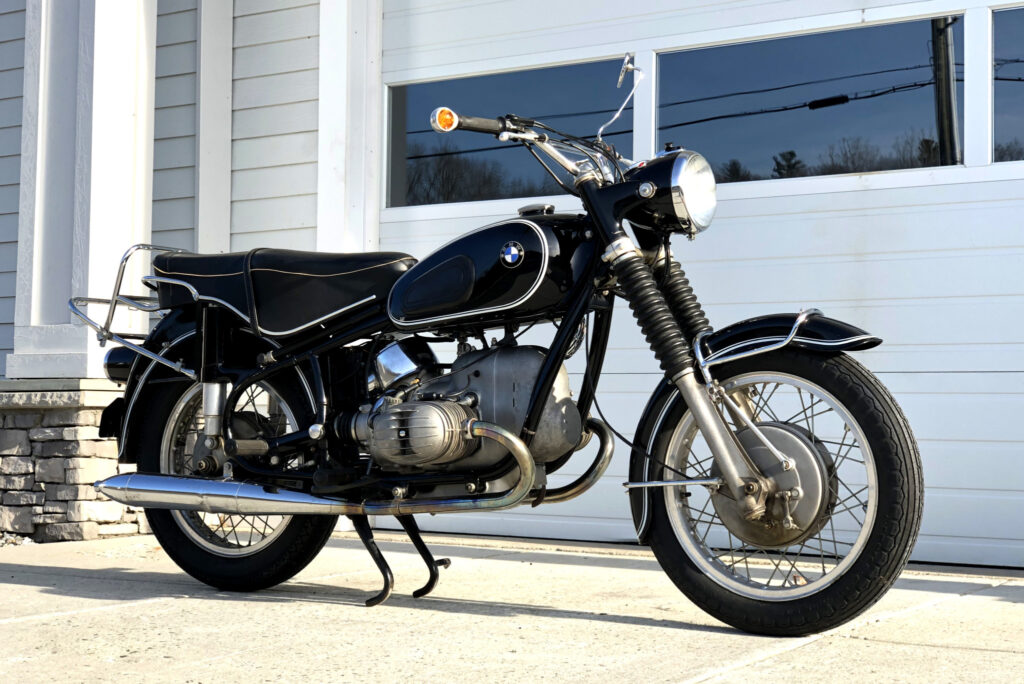

1969 BMW R60US Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1969 BMW R60US.

Basic Specs

Year1969
MakeBMW
ModelBMW R60US
Cost

Engine

Displacement594.00 ccm (36.25 cubic inches)
Type
DetailsTwo cylinder boxer, four-stroke
Max RPM
Compression
Bore/Stroke72.0 x 73.0 mm (2.8 x 2.9 inches)
Valves/Cylinder
FuelingCarburettor. 24mm Bing
IgnitionMagneto
Exhaust
LubricationWet sump
CoolingAir

Drivetrain

Gearbox4-speed
Final DriveShaft drive (cardan)
ClutchDry-single plate-cable operated
Driveline

Performance

Horespower30.05 HP (21.9 kW)
Torque
Top Speed145.0 km/h (90.1 mph)

Fuel Economy & Polution

Fuel Consumption5.00 litres/100 km (20.0 km/l or 47.04 mpg)
Fuel Capacity17.00 litres (4.49 gallons)
Emissions116.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeSteel-double cradle
Rake
Trail
Front SuspensionCartridge
Front Travel
Rear SuspensionTwin shock-Swingarm
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height980 mm (38.6 inches)
Total Length2,137 mm (84.1 inches)
Total Width860 mm (33.9 inches)
Ground Clearance
Wheelbase1,427 mm (56.2 inches)
Dry Weight
Wet Weight195.0 kg (429.9 pounds)

Wheels & Brakes

Front Tire/Tyre3.50-18.00
Rear Tire/Tyre3.50-18.00
Front BrakesExpanding brake (drum brake). Single
Front Brake Diameter200 mm (7.9 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter200 mm (7.9 inches)
WheelsSpoked

Comments

It appears you're interested in specifications for the BMW R60US. This Allround model is powered by a Two cylinder boxer, four-stroke engine with 594.00 ccm (36.25 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor. 24mm Bing allowing this machine to produce its 30.05 HP (21.9 kW) horsepower and torque. According to our records engine heat of the BMW R60US is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 3.50-18.00 and the rear is 3.50-18.00 . The entire package is supported by the frame, Steel-double cradle. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake). Single front brakes and Expanding brake (drum brake) rear brakes. The BMW R60US was launched in 1969, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
