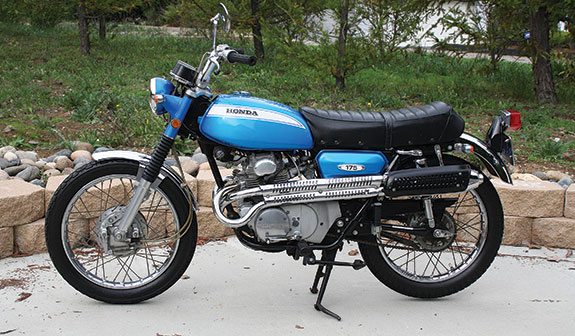

1972 Honda CL 175 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1972 Honda CL 175.

Basic Specs

Year1972
MakeHonda
ModelHonda CL 175
Cost

Engine

Displacement174.00 ccm (10.62 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM10500
Compression9.0:1
Bore/Stroke52.0 x 41.0 mm (2.0 x 1.6 inches)
Valves/Cylinder2
FuelingCarburettor. Keihin
IgnitionContact breaker
Exhaust
LubricationWet Sump
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchWet plate
Driveline

Performance

Horespower19.00 HP (13.9 kW)
Torque
Top Speed128.7 km/h (80.0 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity9.00 litres (2.38 gallons)
Emissions

Chassis

Frame Type
Rake64.0°
Trail90 mm (3.5 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,052 mm (41.4 inches)
Total Length1,966 mm (77.4 inches)
Total Width826 mm (32.5 inches)
Ground Clearance
Wheelbase1,280 mm (50.4 inches)
Dry Weight129.0 kg (284.4 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre2.75-18.
Rear Tire/Tyre3.25-18.
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Honda CL 175. This Classic model is powered by a Twin, four-stroke engine with 174.00 ccm (10.62 cubic inches) of actual displacement before 9.0:1 compression. Fueling is metered via Carburettor. Keihin allowing this machine to produce its 19.00 HP (13.9 kW) horsepower and torque. According to our records engine heat of the Honda CL 175 is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 2.75-18. and the rear is 3.25-18. . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake) front brakes and Expanding brake (drum brake) rear brakes. The Honda CL 175 was launched in 1972, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
