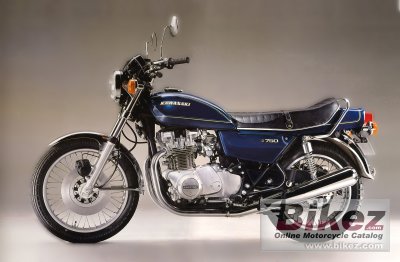

1977 Kawasaki KZ750 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1977 Kawasaki KZ750.

Basic Specs

Year1977
MakeKawasaki
ModelKawasaki KZ750
Cost

Engine

Displacement745.00 ccm (45.46 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM7500
Compression8.5:1
Bore/Stroke78.0 x 78.0 mm (3.1 x 3.1 inches)
Valves/Cylinder2
FuelingCarburettor. Mikuni BS 38 x 2
IgnitionBattery and coil
ExhaustDouble stainless steel pipes
LubricationForced lubrication wet sump
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchWet, multi-disc
Driveline

Performance

Horespower55.00 HP (40.1 kW)
Torque60.00 Nm (6.1 kgf-m or 44.3 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity14.50 litres (3.83 gallons)
Emissions

Chassis

Frame TypeTubular steel, double cradle
Rake63.5°
Trail105 mm (4.1 inches)
Front SuspensionTelescopic fork
Front Travel140 mm (5.5 inches)
Rear SuspensionSwing arm
Rear Travel80 mm (3.1 inches)
Seat
Seat Height845 mm (33.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,115 mm (43.9 inches)
Total Length2,180 mm (85.8 inches)
Total Width815 mm (32.1 inches)
Ground Clearance155 mm (6.1 inches)
Wheelbase1,450 mm (57.1 inches)
Dry Weight218.0 kg (480.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre3.25H-19 4PR
Rear Tire/Tyre4.00H-18 4PR
Front BrakesSingle disc. Single piston floating
Front Brake Diameter245 mm (9.6 inches)
Rear BrakesSingle disc. Single piston floating
Rear Brake Diameter230 mm (9.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Kawasaki KZ750. This Sport touring model is powered by a Twin, four-stroke engine with 745.00 ccm (45.46 cubic inches) of actual displacement before 8.5:1 compression. Fueling is metered via Carburettor. Mikuni BS 38 x 2 allowing this machine to produce its 55.00 HP (40.1 kW) horsepower and 60.00 Nm (6.1 kgf-m or 44.3 ft.lbs) torque. According to our records engine heat of the Kawasaki KZ750 is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 3.25H-19 4PR and the rear is 4.00H-18 4PR . The entire package is supported by the frame, Tubular steel, double cradle. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Single piston floating front brakes and Single disc. Single piston floating rear brakes. The Kawasaki KZ750 was launched in 1977, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

European spec
