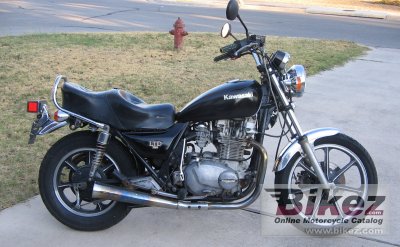

These are the known mechanical and performance specifications for your 1983 Kawasaki KZ 750 K1 LTD.
Basic Specs
Engine
Displacement750.00 ccm (45.77 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM7800
Compression8.5:1
Bore/Stroke78.0 x 78.0 mm (3.1 x 3.1 inches)
Valves/Cylinder2
FuelingCarburettor. 2 Mikuni BS34
Ignitionbattery and coil
Exhaustdouble- chromed pipes
Lubricationwet sump with cooler
CoolingAir
Performance
Horespower55.00 HP (40.1 kW)
Torque60.90 Nm (6.2 kgf-m or 44.9 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption4.70 litres/100 km (21.3 km/l or 50.05 mpg)
Fuel Capacity10.60 litres (2.80 gallons)
Emissions109.0 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Typesteel
Rake28.0°
Trail113 mm (4.4 inches)
Front Suspensiontelescopic forks-pneumatic
Front Travel160 mm (6.3 inches)
Rear Suspensionswing arm with conventional coil-over shocks
Rear Travel96 mm (3.8 inches)
Seat
Seat Height775 mm (30.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,215 mm (47.8 inches)
Total Length2,190 mm (86.2 inches)
Total Width845 mm (33.3 inches)
Ground Clearance155 mm (6.1 inches)
Wheelbase1,475 mm (58.1 inches)
Dry Weight206.0 kg (454.2 pounds)
Wet Weight210.5 kg (464.1 pounds)
Wheels & Brakes
Front Tire/Tyre100/90-19
Rear Tire/Tyre130/90-16
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
Comments
Light with good handling. Great torque across all RPM range. Pulls like a bigger, more powerful bike. HP is under-rated. Hang on above 6000 RPM.
