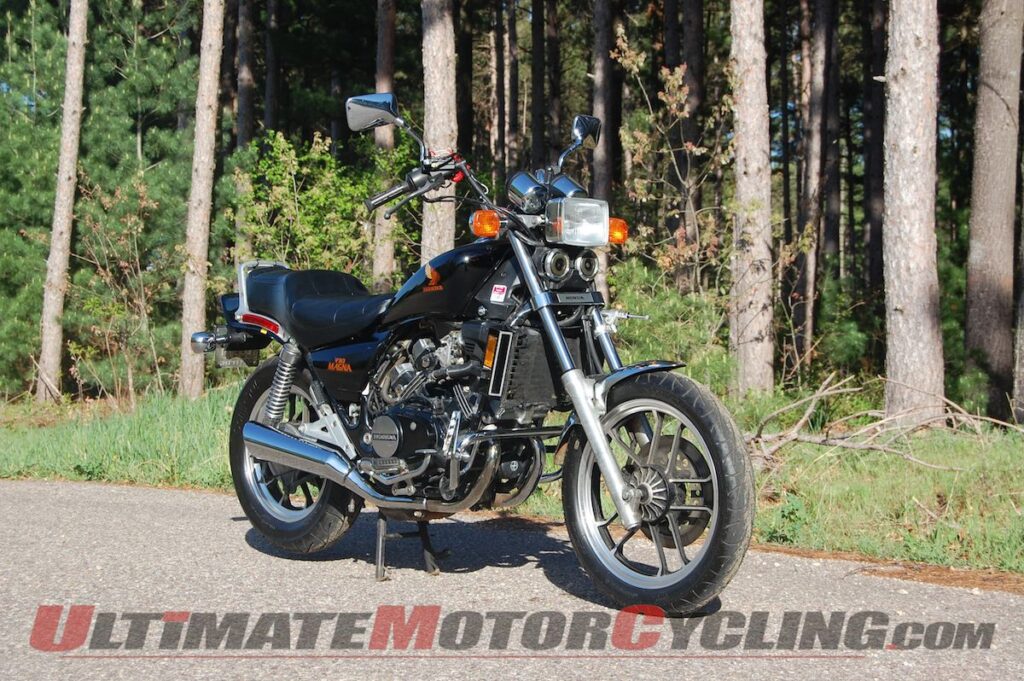

1984 Honda V30 Magna Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1984 Honda V30 Magna.

Basic Specs

Year1984
MakeHonda
ModelHonda V30 Magna
Cost

Engine

Displacement498.00 ccm (30.39 cubic inches)
Type
DetailsV4, four-stroke
Max RPM12500
Compression11.0:1
Bore/Stroke60.0 x 44.0 mm (2.4 x 1.7 inches)
Valves/Cylinder4
FuelingCarburettor. Four 32mm CV
IgnitionSolid State
ExhaustDouble stainless steel pipes
Lubrication
Cooling

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet clutch
DrivelineSealed O-rind chain

Performance

Horespower64.00 HP (46.7 kW)
Torque42.99 Nm (4.4 kgf-m or 31.7 ft.lbs)
Top Speed197.0 km/h (122.4 mph)

Fuel Economy & Polution

Fuel Consumption5.19 litres/100 km (19.3 km/l or 45.32 mpg)
Fuel Capacity14.00 litres (3.70 gallons)
Emissions120.4 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake35.1°
Trail112 mm (4.4 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height759 mm (29.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,483 mm (58.4 inches)
Dry Weight180.0 kg (396.9 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc. 2-piston calipers
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Honda V30 Magna. This Custom / cruiser model is powered by a V4, four-stroke engine with 498.00 ccm (30.39 cubic inches) of actual displacement before 11.0:1 compression. Fueling is metered via Carburettor. Four 32mm CV allowing this machine to produce its 64.00 HP (46.7 kW) horsepower and 42.99 Nm (4.4 kgf-m or 31.7 ft.lbs) torque. According to our records engine heat of the Honda V30 Magna is moderated by . You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. 2-piston calipers front brakes and Expanding brake (drum brake) rear brakes. The Honda V30 Magna was launched in 1984, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
